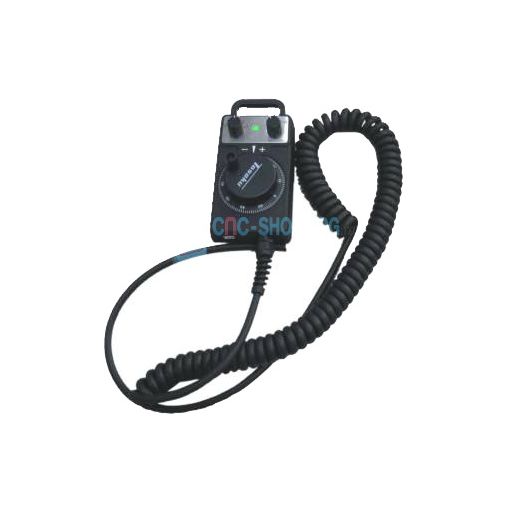

TOSOKU HC115 CNC Handy Controller Handwheel

Buy online your TOSOKU HC115 CNC Handy Controller Handwheel reference TOSOKU HC115 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

Manufactured by TOSOKU, this portable manual pulse generator pendant is designed for precise axis jog control during setup, tool touch-off and service work on FANUC-equipped machine tools. It is a dependable CNC replacement component for lathes and machining centers where reliable handwheel feedback, clear detents and consistent pulses are required.

The HC115 provides four-axis selection with dedicated switching for X, Y, Z and 4th axis. Increment selectors offer x1, x10 and x100 steps, allowing technicians to dial in fine movement for measurement tasks or larger increments for fast positioning. A robust enclosure and tactile pulse wheel help maintain accurate jogging on the production floor, even in demanding maintenance conditions.

Integration is straightforward on FANUC CNC controls that support an external handwheel input. The unit includes a connection cable for the CNC control, which simplifies field replacement and reduces wiring time. Typical use cases include setup on turning centers, tool length setting on vertical and horizontal machining centers, work offset adjustments, fixture alignment and program prove-out.

Built in Japan by TOSOKU, the HC115 is widely used by service teams and retrofit specialists as a direct replacement unit for worn or damaged pendants. When pulse counts drift, selector switches fail or cables degrade, this MPG restores dependable manual control so maintenance crews can bring machines back online quickly.

Reference: HC115

Manufacturer: TOSOKU

Product type: CNC handwheel pendant, manual pulse generator (MPG)

Main function: Manual jogging of X, Y, Z and 4th axis with selectable incremental steps for setup and maintenance

Applications: CNC lathes and machining centers using FANUC controls that accept an external handwheel input

Key technical data: 4-axis selection, three step rates x1/x10/x100, supplied connection cable for the CNC control, Japanese build quality, delivered with warranty. TOSOKU HC115 WIRING DIAGRAM DATASHEET will be provided in the box for wire color matching.

In daily industrial use the HC115 supports fast setups, careful edge finding, probing moves and safe approach to fixtures. It is a practical spare part to keep in the toolroom or service van for emergency changeouts, and a common choice in retrofit or rebuild projects where a reliable MPG is required to validate axis motion and recover machine uptime.

Each unit can be function-checked on appropriate CNC test benches or simulators by skilled engineers to verify pulse output, selector logic and continuity. Packing is done in protective materials suitable for industrial shipping. A warranty is included, and worldwide shipping is available with fast dispatch depending on availability.

This item can serve as an emergency spare to cut downtime when a pendant fails unexpectedly. Cnc-shopping can assist with sourcing obsolete parts, and repair or exchange services may be available to support legacy FANUC installations and keep older equipment productive.

Frequently asked questions about TOSOKU-HC115:

Is the HC115 compatible with my FANUC control?
It is designed for FANUC controls that provide a handwheel input. Check that your CNC has the handwheel option enabled and match wiring using the included diagram.

Which axes and increments are available?
The axis selector covers X, Y, Z and a 4th axis. Increment selection provides x1, x10 and x100 for fine to coarse jogging during setup.

Does the unit include a connection cable and wiring details?
Yes, the pendant is supplied with the connection cable and the TOSOKU HC115 wiring diagram datasheet is included in the box for wire color correspondence, pour la correspondance couleur des fils de la manivelle electronique.

Can this be used as a drop-in replacement for an existing pendant?
In many cases yes, provided your machine uses a FANUC-compatible handwheel interface and the pinout matches the enclosed wiring diagram. Verify connector style and signal mapping during installation.
