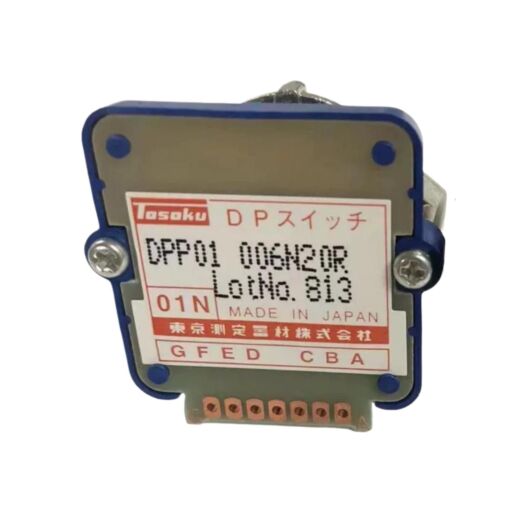

TOSOKU DPP01006N20R Rotary Mode Selector (Binary) Solder-On

Buy online your TOSOKU DPP01006N20R Rotary Mode Selector (Binary) Solder-On from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The TOSOKU DPP01006N20R is a binary-coded rotary selector switch designed for CNC operator panels and industrial machine control consoles. Manufactured in Japan, this selector is commonly used to choose machine operating modes such as jog, MDI, edit, and automatic operation while transmitting coded signals to CNC controls or PLC systems.

Part of the TOSOKU DPP series, this rotary selector provides a reliable binary output pattern that can be read directly by standard digital inputs on control boards. Its design simplifies wiring and ensures stable mode selection without requiring a dedicated input for each switch position. The selector is widely used on machining centers, lathes, EDM machines, and various industrial operator stations.

The DPP01006N20R features solder terminals that provide secure and durable electrical connections, particularly in environments exposed to vibration and continuous operation. This connection method makes the switch well suited for maintenance work, control panel repairs, and retrofit projects where dependable wiring is essential.

This model offers true binary coding with a starting position of 0 and an end position of 06. It features a switching angle of 30° per detent, a 20 mm round shaft, and a waterproof construction that allows it to operate reliably in industrial environments exposed to coolant, dust, and humidity when properly installed.

In maintenance applications, the DPP01006N20R is frequently used to replace worn or faulty selectors that cause intermittent mode selection, contact bounce, or unstable signals. Replacing the defective switch with an identical reference helps restore reliable operation while minimizing machine downtime. Before installation, it is recommended to verify the number of positions, the binary output pattern, and the mechanical dimensions against the machine documentation to ensure full compatibility.

Many maintenance departments keep this selector in spare inventory because a failed mode switch can prevent machine operation and delay production. It is also a practical solution for retrofit projects involving older machines where original selector switches are no longer available, provided the wiring and binary coding match the existing installation.

Each unit can be inspected and functionally tested on appropriate CNC test benches or simulators to verify correct binary output operation before shipment. Products are packaged using protective materials suitable for industrial transportation and are supplied with standard warranty coverage. Worldwide shipping, repair services, and exchange solutions may also be available depending on stock and application requirements.

For legacy CNC systems, the TOSOKU DPP01006N20R serves as an effective emergency spare that helps reduce unexpected downtime and maintain the long-term operation of existing machine installations.

Frequently asked questions about DPP01006N20R:

Is the coding binary or BCD?
This model provides a binary-coded output pattern suitable for routing to discrete input channels on a PLC or CNC. Always match the required coding and position count with the machine wiring diagram before ordering.

What does solder-on mean for installation?
The switch uses solder terminals instead of screw clamps, which ensures a solid electrical joint on panels subject to vibration. Use the correct wire gauge and follow your plant’s soldering standards for durable connections.

Can this be used as a drop-in replacement for another selector?
Yes, when the mechanical fit and the binary contact map match your original part. Confirm pinout, indexing positions and panel fit against the OEM drawing for a true drop-in replacement.

Which systems typically accept the binary outputs?
Most CNC and PLC input boards that read discrete signals can accept the outputs from this selector. Verify voltage levels, common reference and input card requirements with your control documentation.
