SIEMENS 6SN1118-0DH21-0AA1 Digital Reg Board 2 axes

Buy online your SIEMENS 6SN1118-0DH21-0AA1 Digital Reg Board 2 axes reference 6SN1118-0DH21-0AA1 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

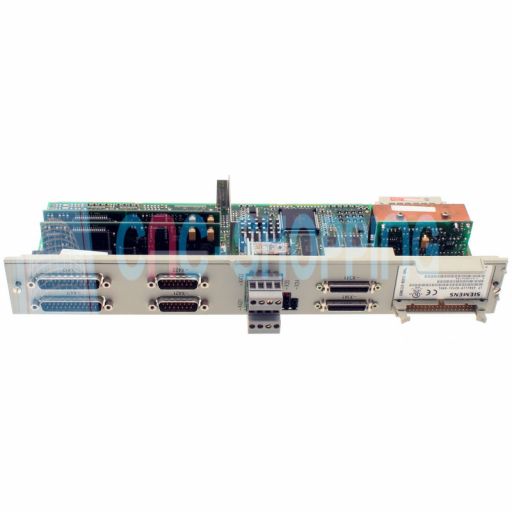

This SIEMENS SIMODRIVE 6SN1118 module is a two-axis digital regulation board designed for the SIMODRIVE 611-D platform. It provides closed-loop control for two feed axes driven by SIEMENS servo motors, serving as a reliable CNC replacement component for machine-tools that run the 611-D drive system.

The board plugs into a 611-D power module and handles the digital regulation required for accurate current and speed control on two axes. It interfaces with the 611-D internal bus and the machine control to stabilize axis behavior, improving position repeatability when paired with the correct feedback and motor data. Typical use includes X and Y feed axes on machining centers, turning axes on lathes, and traverses on grinding machines built on the SIMODRIVE 611-D platform.

As part of the 6SN1118 family, the variant 6SN1118-0DH21-0AA1 is intended for two-axis configurations within the 611-D drive stack. Identification is supported by the SIEMENS P.C.B code 462008.7805.58 with marking GWE-567008901480, which helps maintenance teams confirm a like-for-like replacement unit during unplanned downtime or planned maintenance.

In retrofit or service environments, this control board is used where stable two-axis regulation is required without altering the existing 611-D power hardware or motor lineup. It supports field replacement with minimal mechanical intervention since it resides inside the 611-D assembly, allowing technicians to focus on parameter consistency and machine data alignment after swap.

Reference: 6SN1118-0DH21-0AA1

Manufacturer: SIEMENS

Product family: SIMODRIVE 6SN1118 digital regulation board

Main function: Two-axis digital regulation inside SIMODRIVE 611-D power modules for SIEMENS servo-driven axes

Applications: Feed axes on machining centers, lathes, grinders and other CNC machines equipped with SIMODRIVE 611-D

Key technical data: Fits into SIEMENS 611-D power module, manages two digital axes with SIEMENS servos, P.C.B ref 462008.7805.58 with GWE-567008901480 marking, supplied as a tested unit with warranty, dispatch typically within 3 days depending on availability.

On the production floor this board is commonly sourced as a spare part to restore axis control after fault events such as drive alarms or erratic feedback behavior traced to regulation electronics. Maintenance teams often keep a stocked replacement unit for the 611-D stack to reduce machine downtime and to support legacy equipment where the same servo motors and power modules remain in service.

For tested quality, units are verified by skilled engineers on dedicated SIMODRIVE 611-D test benches or simulators that exercise both axes regulation channels. Each board is packed in ESD-safe materials suitable for industrial shipping. A warranty is included to back reliable operation after installation, with fast dispatch depending on inventory.

This component is frequently used as an emergency spare on older installations where the 611-D platform remains in service. Cnc-shopping can assist with repair service, exchange service or sourcing of obsolete parts to keep machines running and extend system life without a full drive upgrade.

Frequently asked questions about 6SN1118-0DH21-0AA1:

Is this Siemens Control reg. board board compatible with any 611-D power module variant?
It is intended for use in the SIMODRIVE 611-D system where a two-axis regulation board is required. Match the exact code 6SN1118-0DH21-0AA1 and verify with the drive stack configuration on the machine to ensure a drop-in replacement.

Can it replace other 6SN1118 versions with different suffixes?
Not all 6SN1118 variants are interchangeable. For service work use the identical variant or confirm an approved cross-reference before installation. (1 axe, 2 axes, digital, analog, many versions, so make sure you take the same SIEMENS P/N)

Does the Siemens 6SN1118 unit retain machine parameters after replacement?
Machine-specific settings are usually managed by the CNC and drive configuration. After swapping the board, technicians should verify and reload the appropriate machine data to align both axes with the original setup.

How can I confirm I have the correct hardware revision?
Check the front-side part marking 6SN1118-0DH21-0AA1 and the P.C.B ref 462008.7805.58 with GWE-567008901480. These identifiers help confirm the correct hardware for your 611-D installation.
