SIEMENS 6FC5303-0AF23-0AA1 Sinumerik Operator Panel MCP310C

Buy online your SIEMENS 6FC5303-0AF23-0AA1 Sinumerik Operator Panel MCP310C from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

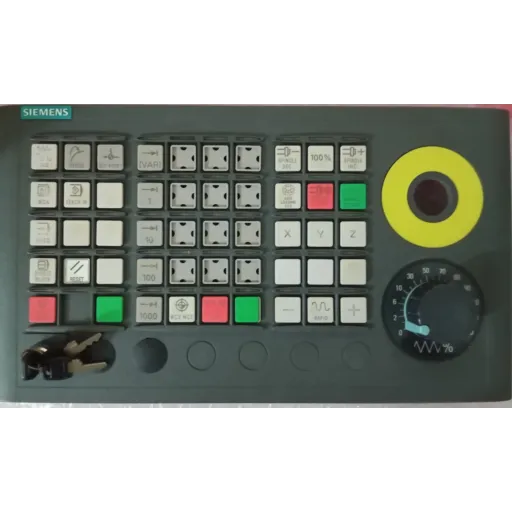

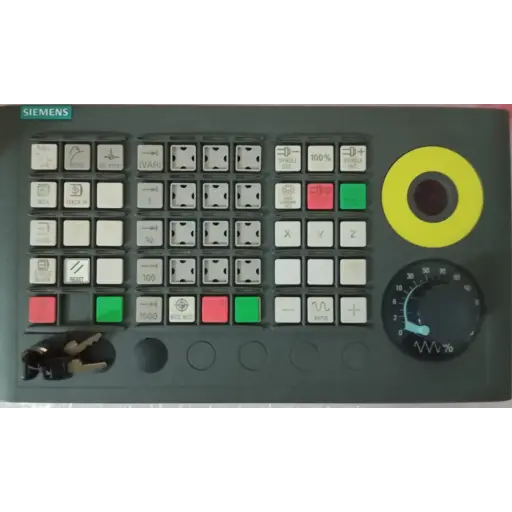

The SIEMENS MCP310C PN, reference 6FC5303-0AF23-0AA1, is a machine control panel designed for SINUMERIK CNC systems. It provides a direct interface between the operator and the CNC control through a set of mechanical keys used to access and control the machine’s main functions.

Designed for industrial environments, the 6FC5303-0AF23-0AA1 uses PROFINET / Industrial Ethernet communication and features 24 VDC / 0.3 A digital outputs. Its robust construction and tactile key interface make it suitable for demanding machine-tool applications, including milling, turning and grinding machines.

The 6FC5303-0AF23-0AA1 is well suited for maintenance, replacement and retrofit applications on machines equipped with SINUMERIK controls. It can replace an existing panel affected by worn, damaged or unresponsive keys, helping restore reliable operator control and reduce machine downtime.

This unit is therefore a practical industrial replacement part for maintaining legacy and production CNC equipment. Before installation, the exact part number, panel configuration and compatibility with the existing SINUMERIK system should be verified to ensure proper integration.

Frequently asked questions about 6FC5303-0AF23-0AA1:

How can I confirm compatibility with my SINUMERIK system?
Match the full reference on your existing front panel with 6FC5303-0AF23-0AA1 and verify the MCP310C designation. Also check the key layout and labeling to ensure the same matrix and machine functions are supported on your control.

Is this a drop-in mechanical replacement for an existing MCP310C panel?
In most cases yes when the code and variant match. The panel is intended for the original front-panel cutout and reuses the existing console mounting and interface connection used by the previous unit.

Does it include cables or accessories?
It is typically supplied as the operator panel assembly only. Reuse your existing interface cable and mounting hardware if they are in good condition, or source replacements separately if required.

Can this be used in a retrofit on a similar machine model?
It is commonly used in retrofits where the SINUMERIK control and HMI layout match the MCP310C variant. Verify the key layout and control interface to ensure a straightforward integration before installation.
