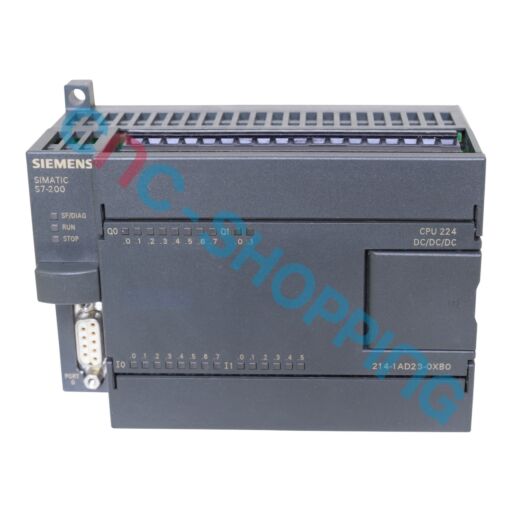

SIEMENS 6ES7214-1AD23-0XB0 Simatic S7-200 Central Processing Unit CPU 224

Buy online your SIEMENS 6ES7214-1AD23-0XB0 Simatic S7-200 Central Processing Unit CPU 224 reference 6ES7214-1AD23-0XB0 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

This SIEMENS SIMATIC S7-200 module is a compact industrial controller used as the logic core for small to mid-size machines and auxiliary systems. The CPU 224 coordinates digital I/O, executes user logic and communicates with operator panels or drives, making it a proven replacement unit for legacy automation and CNC support equipment where stable, serviceable control is required.

The unit belongs to the S7-200 micro PLC family, widely installed in machine-tool peripherals, indexing equipment, material handling and OEM control panels. In a typical CNC environment it supervises subsystems such as bar feeders, coolant skids, tool changers, chip conveyors or safety interlocks, while exchanging signals with the main CNC via discrete lines or serial links. Its compact footprint simplifies panel retrofits and field replacements when cabinet space is tight.

As the application controller, the CPU scans inputs, solves the user program and updates outputs in a deterministic scan cycle. It supports STEP 7 MicroWin engineering for ladder, statement list and function block programming, which is standard practice for service teams maintaining the installed S7-200 base. Integration with SIMATIC HMI panels that support PPI communication and connection to S7-200 signal modules allow straightforward expansion without redesigning the cabinet.

Communication is handled over RS-485 PPI for programming, HMI and networking within S7-200 cells, with optional communication processors available for broader connectivity where required. The CPU 224 series was produced in variants for different supply and output types. Matching the order number on the nameplate ensures a true drop-in swap with the existing unit, preserving wiring, mounting and program behavior.

Built for industrial panels, the device tolerates the electrical noise and vibration commonly found around machine tools when installed according to SIEMENS guidelines. Its proven design and long service history make it a dependable CNC replacement component for keeping legacy equipment productive without immediate migration to newer platforms.

Reference: 6ES7214-1AD23-0XB0

Manufacturer: SIEMENS

Product type: SIEMENS SIMATIC S-7 6ES7 PLC

Main function: Compact PLC CPU for S7-200 applications handling machine logic, I/O scanning and basic motion sequencing with HMI and network connectivity.

Applications: Machine-tool auxiliaries, standalone automation stations, conveyors, packaging, pumping and OEM panels in maintenance and retrofit projects.

Key technical data: Part of the SIMATIC S7-200 CPU 224 range with integrated digital I/O, expandable via S7-200 signal and communication modules, PPI over RS-485 for programming and HMI, engineered with STEP 7 MicroWin. Made in Germany. Fast dispatch depending on availability, typically within 3 days. Suitable as a spare part, replacement unit or for retrofit of existing S7-200 panels.

In the field this model is commonly stocked by maintenance teams to recover machines after logic controller faults, program memory issues or communication failures. Keeping a like-for-like CPU 224 on the shelf shortens troubleshooting, enables a direct swap and helps restore machine operation with minimal wiring disturbance and limited re-commissioning.

For preventive strategies, many users back up the MicroWin project and maintain a tested unit as part of their industrial spare inventory. This approach supports planned retrofits and extends the lifetime of equipment built around the S7-200 platform without rewiring or software migration.

Each unit is function-checked by skilled engineers on appropriate PLC test benches and simulators, including program download verification and communication checks over RS-485. Products are packed in ESD-safe materials with protective cushioning for worldwide shipping. Warranty terms apply according to our e-store policy.

This item is frequently used as an emergency spare for older systems and may replace an obsolete part where S7-200 hardware must be maintained. Repair service or exchange service can be considered depending on condition and availability, helping legacy installations remain operational without immediate platform migration.

Frequently asked questions about 6ES7214-1AD23-0XB0:

Is this a drop-in replacement for an existing CPU 224 with the same order number?
Yes. If the order number on your unit matches 6ES7214-1AD23-0XB0, it is the correct one-to-one replacement, keeping wiring, footprint and project compatibility consistent.

Which software is used to program this controller?
It is engineered with STEP 7 MicroWin. A PPI programming cable is used for upload, download and diagnostics over the RS-485 port.

Will my existing S7-200 expansion modules work with this CPU?
It is designed for the S7-200 family and works with compatible S7-200 signal and communication modules when installed within SIEMENS module limits and wiring rules.

Can this unit communicate with a SIMATIC HMI panel?
Yes. HMIs that support PPI can be connected over RS-485. Verify your panel’s interface settings and cable type for stable communication.

Is there a direct upgrade path to S7-1200 without hardware changes?
No. Migration to S7-1200 requires new hardware and TIA Portal engineering. This CPU is intended as a like-for-like replacement unit to keep S7-200-based machines running.
