SIEMENS 6ES7158-0AD01-0XA0 SIMATIC ET200 Coupler

Buy online your SIEMENS 6ES7158-0AD01-0XA0 SIMATIC ET200 Coupler from UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

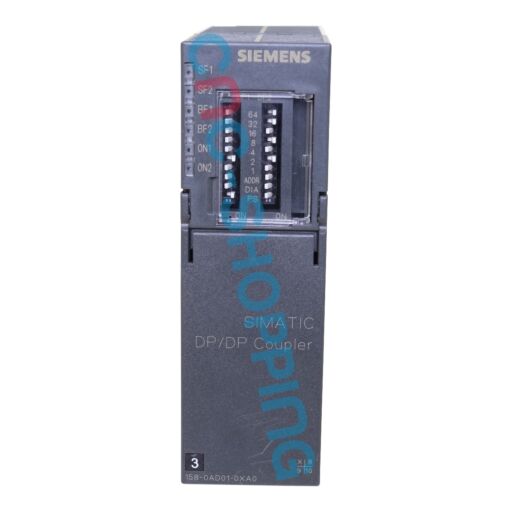

This SIEMENS 6ES7158-0AD01-0XA0 is a SIMATIC DP/DP Coupler designed to exchange process data between two independent PROFIBUS DP networks. It provides reliable cyclic data communication between separate DP segments and is suitable for SIMATIC S7, ET 200, and industrial automation systems.

The module operates as a DP slave on each PROFIBUS DP network, allowing two independent segments to exchange input and output data without directly merging their network structures. This makes it suitable for CNC machine tools, machine PLCs, distributed I/O systems, tool changers, hydraulic units, coolant systems, and other auxiliary equipment.

Configuration is performed using the appropriate GSD file, with process data exchanged between both PROFIBUS sides according to the configured input and output areas. The module is designed for integration into existing PROFIBUS DP installations and is particularly useful for retrofit projects where legacy Siemens communication infrastructure must be maintained.

The 6ES7158-0AD01-0XA0 is suitable as a replacement unit, CNC replacement component, or industrial spare part for S7 and ET 200 installations. It can help restore communication following a fieldbus failure while preserving existing PLC programs, PROFIBUS wiring, and network architecture.

This SIEMENS SIMATIC DP/DP Coupler is suitable for industrial spare inventory, emergency maintenance, and obsolete equipment support. Cnc-shopping can supply a tested unit with commercial warranty, protective packaging, worldwide shipping, and fast dispatch depending on inventory. Refurbished units, repair service, and exchange service may also be available depending on the part condition.

Frequently asked questions about 6ES7158-0AD01-0XA0:

Is this module compatible with SIMATIC S7-300 and S7-400 systems?
Yes. It is used to couple two PROFIBUS DP segments commonly found with S7-300 or S7-400 controllers and ET 200 remote I/O. Each side is seen as a DP slave by its respective master.

Can it exchange data with third-party PROFIBUS DP masters?
In most cases yes, provided the master supports standard DP slave integration via the correct GSD file. Data lengths and mapping must be configured according to the engineering tool used on each network.

Does replacing a failed unit require changes to the PLC program?
Typically no. When you load the same configuration and address settings, the coupler functions as a drop-in replacement unit. Always match the order number and replicate the original parameterization.

Where is it commonly installed in CNC machines?
The module is mounted in the control cabinet to bridge the machine PLC segment with a second PROFIBUS network serving ET 200 racks or auxiliary equipment such as tool changers and peripheral stations.
