SIEMENS 6ES7 151-3BA23-0AB0 Simatic S7 ET200S

Buy online your SIEMENS 6ES7 151-3BA23-0AB0 Simatic S7 ET200S from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

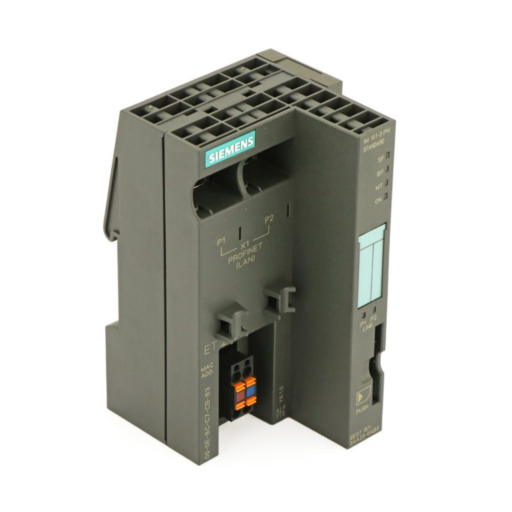

The SIEMENS 6ES7151-3BA23-0AB0 is a high-feature PROFINET interface module for the SIMATIC ET200S distributed I/O system. Used with SIMATIC S7 and SINUMERIK controllers, it connects modular ET200S stations to industrial Ethernet networks for fast and reliable real-time communication in CNC and factory automation environments.

This module supports PROFINET IO, isochronous data exchange, and line topology through its integrated 2-port RJ45 switch. It can connect up to 63 I/O modules over a maximum station width of 2 meters, making it suitable for machine tools, packaging lines, retrofit projects, and distributed machine I/O systems.

Designed for IP20 control cabinets, the module allows quick replacement without rewiring because field wiring remains on the ET200S base modules. It is commonly used as a spare, tested, replacement unit to reduce downtime, restore faulty ET200S stations, and maintain long-term support for legacy PROFINET-based installations.

Frequently asked questions about 6ES7151-3BA23-0AB0:

Which controllers can this ET200S head module work with on PROFINET IO
It operates as a PROFINET IO device with SIMATIC S7-300, S7-400 and S7-1500 controllers, and is commonly used with SINUMERIK CNC systems that rely on distributed I/O over PROFINET.

Does it support line topology without an external switch
Yes, it includes a 2-port switch on the front RJ45 connectors, enabling simple line connections between stations and reducing the need for separate switch hardware.

Can this be used as a direct drop-in replacement for the same code
For failed ET200S interface modules with the identical reference, it is typically a drop-in replacement. Verify hardware index and GSDML version in the project to ensure the configuration matches the installed station.

Is isochronous operation supported for motion-related I/O
The high-feature BA23 variant supports isochronous PROFINET IO projects when configured accordingly in the engineering software. Confirm project settings and controller capabilities during commissioning.

What mounting arrangement is required
It mounts on the ET200S rail with the appropriate base modules. The existing I/O slices and wiring remain on their bases, which simplifies service and speeds up field replacement.
