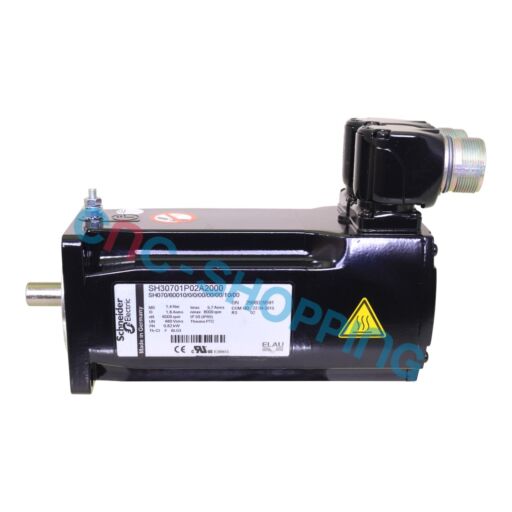

SCHNEIDER SH30701P02A2000 AC Servo Motor 6000-8000rpm

Buy online your SCHNEIDER SH30701P02A2000 AC Servo Motor from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

This Schneider Electric AC servo motor from the PacDrive 3 SH3 series is designed for precise CNC axis positioning and industrial motion control. It is widely used as a replacement motor or spare part to restore machine performance and ensure reliable closed-loop operation.

The SH30701P02A2000 is a three-phase servo motor with a maximum speed of 8000 rpm, a continuous torque of 1.25 Nm, a peak torque of 3.5 Nm, and a continuous power rating of 690 W. Operating on 115 to 480 V, it delivers accurate speed, torque and position control when paired with a compatible Schneider Electric servo drive.

Compatible with the PacDrive 3 platform, this motor is suitable for CNC feed axes, pick-and-place systems, indexers, gantry axes and other synchronized multi-axis applications requiring fast acceleration and high positioning accuracy. Its 11 mm smooth shaft allows straightforward integration into existing equipment when the mechanical dimensions match.

For a direct replacement, it is recommended to use the same SH30701P02A2000 reference and verify drive compatibility, feedback configuration, connectors and motor parameters. Matching the original motor helps minimize commissioning time and avoids unnecessary tuning during installation.

Maintenance teams often keep this model in stock to replace failed servo motors quickly and restore production with minimal downtime. Using an identical replacement also simplifies preventive maintenance and extends the service life of existing Schneider Electric motion systems.

Each motor can be supplied as a tested unit or refurbished unit, depending on availability and customer requirements. Skilled engineers verify electrical performance, feedback signals and operating characteristics on dedicated CNC test benches and servo motor simulators. The motor is shipped in protective industrial packaging with warranty coverage and worldwide delivery. Cnc-shopping also offers repair services, exchange services and obsolete part sourcing to help keep legacy Schneider Electric equipment in operation.

Frequently asked questions about SH30701P02A2000:

How do I confirm this motor will work with my Schneider drive?
Match the full reference on your installed motor, then check the drive family and the configured motor file. Verify feedback type and connector style against your existing cabling to ensure a direct drop-in.

What does the 6000-8000 rpm range mean for my application?
It indicates the mechanical speed capability of the motor series. Set your drive limits to the machine requirements and gearbox ratio, then validate peak speed during commissioning to protect mechanics and tooling.

Are power and feedback cables included?
Cables are typically ordered separately according to the machine harness and connector layout. If you need matching cable sets or connectors, provide the installed lengths and part references for a compatible offer.

Can this be supplied as a refurbished or exchange unit?
Yes, depending on current inventory and your core return, we can offer a refurbished unit or an exchange service. This approach is often used to reduce lead time and control maintenance costs.
