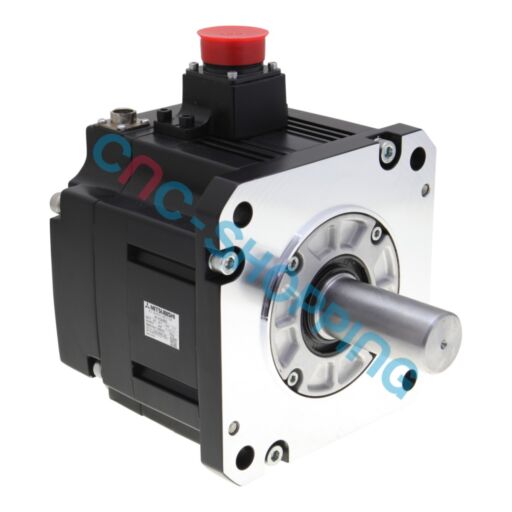

MITSUBISHI HF-H204BS-A48 AC Servo motor Straight shaft Brake 381V 2kW

Starting at €1,800.00 €1,800.00

Product condition Availability Warranty
Price
New
Ships from: FRANCE Warehouse
stock available Shipment within 3 days
12 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€1,800.00 €1,800.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your MITSUBISHI HF-H204BS-A48 AC Servo motor Straight shaft Brake 381V 2kW reference HF-H204BS-A48 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

This MITSUBISHI unit from the HF-H series is a 2 kW AC servo motor designed for CNC axis control on machine-tools. It provides closed-loop positioning with factory-specified A48 feedback, an integrated holding brake for secure stops, and a straight shaft interface for direct coupling. Suitable as a replacement motor or spare part, it fits maintenance, retrofit and repair scenarios where a robust CNC replacement component is required.

The HF-H204BS operates in the 381 V three-phase class at approximately 3.8 A, delivering reliable torque for feed axes in milling, turning and general automation. With a speed class of 3000 rpm and model variants reaching up to 4000 rpm, it covers typical travel and rapid moves on X, Y, Z and auxiliary axes. The front-mounted power plug simplifies cable access in tight enclosures and helps maintain neat routing during a field replacement.

Feedback is handled by the A48 encoder used across the HF-H family, allowing the servo amplifier to read position and speed precisely. The built-in holding brake is well suited to Z axes or any axis requiring secure static holding when power is removed. As part of the HF range, this motor is intended to run with MITSUBISHI servo amplifiers specified for HF-H motors. Mechanical and electrical characteristics match the series profile for straightforward commissioning after a motor swap.

For maintenance teams managing legacy assets, the HF-H204BS provides a practical drop-in approach. The straight shaft accommodates common couplings found on machining centers and CNC lathes. Use it to replace a worn or faulty motor that is generating encoder alarms, brake hold issues or thermal trips. It is commonly sourced as a tested unit for planned downtime or kept as a stocked spare in industrial spare inventory.

Reference: HF-H204BS

Manufacturer: MITSUBISHI

Product type: MITSUBISHI AC Servo Motor

Main function: 2 kW axis servo motor for CNC positioning and feed drive duties with integrated holding brake and A48 feedback

Applications: X, Y, Z and auxiliary axes on CNC machine-tools, vertical axes that require a brake, retrofit and field replacement on MITSUBISHI-based systems

Key technical data: Part of the HF-H series, rated 2 kW, three-phase 381 V class, approximately 3.8 A rated current, speed class 3000 rpm with model variants up to 4000 rpm, straight shaft output, integrated brake, A48 encoder, front power plug, designed to be driven by MITSUBISHI servo amplifiers. Made in Japan. Typical dispatch within 3 days depending on inventory.

In day-to-day industrial service this model is used to restore axis motion without reworking mechanics or cabling. It supports preventive maintenance strategies where a replacement unit is staged to minimize machine downtime, and it suits retrofit projects that must keep the original HF-H envelope while renewing the motor.

Units are bench-tested on CNC simulators with matched MITSUBISHI servo amplifiers by skilled engineers, following manufacturer procedures. Packaging is prepared for industrial transit with protected motor flanges and connectors. Supplied as a tested unit with a performance guarantee, with repair or exchange options available depending on condition and availability.

For time-critical failures this model can serve as an emergency spare to cut unexpected downtime. Cnc-shopping can support sourcing of obsolete parts, provide refurbished units when suitable, and help keep older CNC installations operational through repair service and exchange service when feasible.

Frequently asked questions about HF-H204BS:

Which servo amplifiers can run this motor?
It is intended for use with MITSUBISHI servo drives specified for the HF-H series. Match the voltage class, power rating and feedback interface to the amplifier model used on your machine.

What does the A48 designation mean for feedback compatibility?
A48 identifies the feedback type used on this HF-H motor. Pair it with a MITSUBISHI amplifier that supports the A48 encoder interface and use the correct feedback cable set defined for HF-H motors.

Is the integrated brake suitable for vertical Z axes?
Yes, the HF-H204BS includes a holding brake commonly used on vertical axes or any axis that must hold position when power is off. Confirm your drive or control panel provides the required brake control circuit.

Can this replace an HF-H204S on machines that now require a brake?
The HF-H204BS adds an integrated brake compared with typical S variants. Mechanical fit is within the HF-H family profile, but verify connector orientation, feedback type and wiring to ensure a clean drop-in replacement.

What are the key electrical characteristics to verify before ordering?
Confirm three-phase 381 V class, approximately 3.8 A current, 2 kW rating and the A48 encoder match your existing drive and cabling. Check the straight shaft and front power plug orientation against your machine layout.
