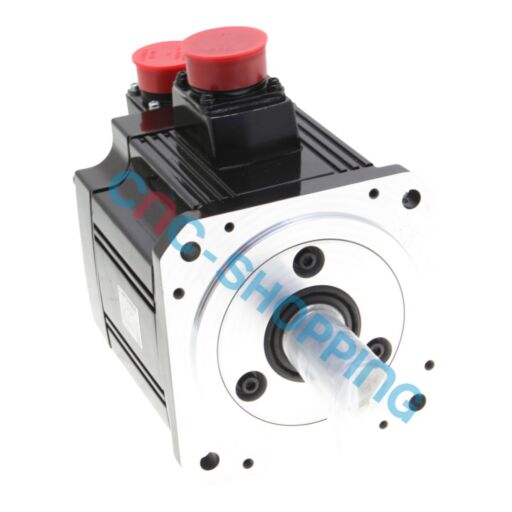

MITSUBISHI HC-SFS1024B AC Servomotor 2000rpm 1kW

Buy online your MITSUBISHI HC-SFS1024B AC Servomotor 2000rpm 1kW reference HC-SFS1024B from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

This MITSUBISHI axis unit from the HC-SFS series is a closed-loop AC servo motor for the MELSERVO platform, used to drive CNC feed axes with precise position and speed control. It is a practical replacement motor for machine-tool service tasks, commonly sourced as a spare part for maintenance teams managing downtime and retrofit work.

Rated at 1.0 kW with a nominal speed of 2000 rpm, this model integrates an encoder for feedback and an integrated holding Brake for safe axis retention when power is removed. It is frequently used on X, Y or Z axes where reliable positioning and repeatability are required during CNC operations.

The mechanical interface includes a 24 mm smooth shaft and a 110 mm pilot that aligns with common machine-tool mounting faces. The motor is unventilated, which suits enclosed cabinets and harsh shop-floor environments where forced ventilation is not desired. A front-mounted power connector simplifies cable routing in tight spaces.

Electrical characteristics are designed for the MITSUBISHI servo ecosystem, with a nominal supply of 243 V three-phase AC and a current rating of 2.8 A. Encoder feedback supports precise axis control within MELSERVO drive configurations. Always verify the nameplate and drive parameters during field replacement to ensure a true drop-in match.

This reference is also encountered under common print variants such as HCSFS1024B, HC SFS1024B or HC-SFS1O24B, and is manufactured in Japan.

Reference: HC-SFS1024B

Manufacturer: MITSUBISHI

Product type: MITSUBISHI AC Servo Motor

Main function: Servo axis drive for CNC positioning with integrated brake and encoder feedback

Applications: CNC lathes, milling machines and machining centers requiring reliable feed-axis motion and secure vertical-axis holding

Key technical data: 1.0 kW nominal output, 2000 rpm rated speed, integrated encoder feedback, with brake, 243 V AC three-phase supply, 2.8 A current, unventilated construction, 24 mm smooth shaft, 110 mm pilot, front power plug, HC-SFS family for MELSERVO systems, Japan build

In the field, this model is selected to restore axis performance on machine tools that rely on the HC-SFS family. Maintenance teams use it as a tested unit for quick replacement, keeping one on the shelf as industrial spare inventory to shorten machine downtime during breakdowns or scheduled overhauls.

For repair work or retrofits, the motor serves as a CNC replacement component when the installed unit shows encoder errors, brake wear or winding faults. Its matching mechanical interface and feedback integration help minimize rework, which supports faster restart of production.

Each unit is tested and refurbished by qualified technicians following manufacturer procedures. Motors are validated on CNC simulators with servo motors, then packed in protective materials suitable for industrial transit. Units are supplied with a functional warranty, with dispatch typically in 5 to 8 days depending on availability and destination.

This part can be kept as an emergency spare to reduce unplanned stoppages. Cnc-shopping can assist with sourcing obsolete parts and can offer repair or exchange service options when applicable, helping legacy CNC installations remain operational with dependable support and worldwide shipping.

Frequently asked questions about HC-SFS1024B:

Does this motor include a holding brake?
Yes, the model is supplied with an integrated brake to secure the axis when power is removed, which is important on vertical or safety-critical axes.

What are the main mechanical interface details?
It uses a smooth 24 mm shaft and a 110 mm pilot for centering. These dimensions help confirm drop-in fit with existing couplings and mounting faces.

Which systems is it intended to run with?
It is designed for integration in MITSUBISHI MELSERVO installations within the HC-SFS family. Always match the motor code with the intended servo amplifier and parameter set.

What are the key electrical ratings I should verify?
Check the nameplate for 243 V AC three-phase supply, 2.8 A nominal current and 2000 rpm rated speed. Confirm encoder connectivity and connector orientation before field replacement.
