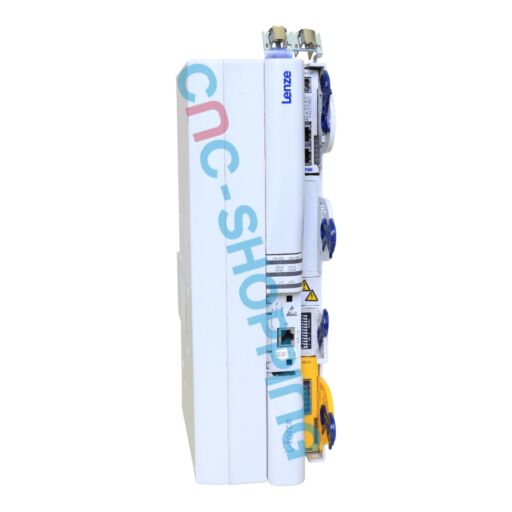

LENZE E94AMHE0324 Multi Drive HighLine

Buy online your LENZE E94AMHE0324 Multi Drive HighLine from UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The LENZE E94AMHE0324 is a 9400 HighLine MultiDrive axis module designed for precise servo control in CNC machines and industrial automation systems. It provides closed-loop control of current, torque, speed and position for rotary servo axes, making it a practical replacement unit, CNC replacement component and industrial spare part for multi-axis equipment.

This LENZE 9400 HighLine module is designed for shared DC-bus operation, allowing several drive axes to operate from a common DC link. This multi-axis architecture can reduce cabinet wiring, support energy exchange between axes and provide a compact solution for CNC machine tools and coordinated motion systems.

The E94AMHE0324 is rated at 32 A and 15 kW, with a 565 VDC DC-bus voltage and an 8 kHz switching frequency. The module is designed for cabinet installation and can be configured with compatible fieldbus, feedback and option modules, depending on the machine architecture and installed hardware.

The complete reference E94AMHE0324 is important when replacing a faulty axis module. Matching the exact hardware code and installed option modules helps maintain compatibility with the existing servo motor, feedback system, controller and machine parameters, simplifying commissioning and reducing machine downtime.

This LENZE servo inverter is suitable for CNC milling machines, turning machines, grinding machines, gantry systems, handling equipment and packaging machinery requiring coordinated multi-axis motion. It can be used to replace drives affected by power-stage faults, encoder alarms, communication errors or unstable axis operation.

Each unit supplied by Cnc-shopping can be tested with suitable servo motors and CNC test equipment to verify power-stage operation, control functions and alarm behavior before shipment. Units are protected with ESD-safe packaging and securely prepared for industrial transportation, with a commercial warranty, worldwide shipping and fast dispatch depending on availability.

The LENZE E94AMHE0324 can also be kept as an emergency spare in industrial spare inventory to reduce downtime following an unexpected servo drive failure. Cnc-shopping can assist with sourcing obsolete LENZE parts and may provide tested or refurbished units, repair services or exchange services when applicable, helping extend the service life of legacy CNC and automation equipment.

Frequently asked questions about E94AMHE0324:

How do I confirm that E94AMHE0324 is a drop-in replacement for my cabinet?
Match the full hardware code on the nameplate, verify the current rating and check the fitted communication and feedback option modules. Reusing the same option set and restoring the saved parameters from your machine archive ensures the closest like-for-like swap.

Which motors can this module control?
It is intended for Lenze-supported AC servo motors used with the 9400 platform, provided the drive current rating suits the motor nameplate. Select the correct feedback option so the installed encoder type is supported.

What fieldbus interfaces are available on the 9400 HighLine platform?
Communication is handled by plug-in option cards. Common choices in CNC retrofits include CANopen or EtherCAT, and other networks may be available depending on the fitted module and controller requirements.

How are parameters transferred during a replacement?
Use the machine’s saved parameter set from your service backup to load into the replacement drive with Lenze engineering tools. If a direct backup is not available, the unit can be configured using the machine builder’s documentation and axis data.

Do you offer tested or refurbished units for urgent needs?
Depending on availability you can source a tested unit or a refurbished unit, and a repair or exchange route can be proposed. Contact us for current options and lead time.
