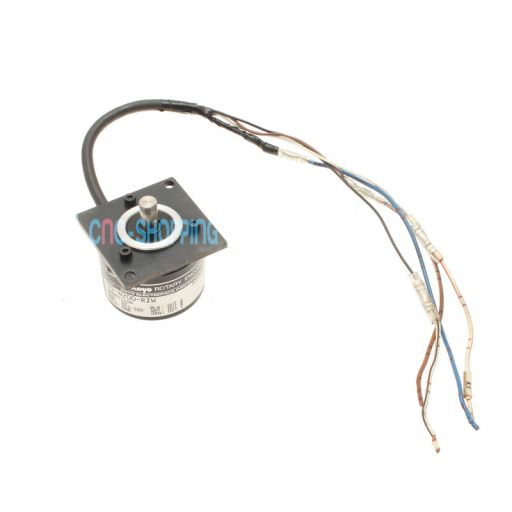

KOYO TRD-N200-RZW Rotary encoder

Buy online your KOYO TRD-N200-RZW Rotary encoder reference KOYO-TRD-N200-RZW from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

This unit is an incremental rotary feedback device from KOYO Electronics designed for position and speed monitoring on CNC machine tools and industrial automation equipment. It serves as a reliable CNC replacement component and spare part for field repairs, retrofits and maintenance programs where stable two-channel feedback with a home pulse is required.

The encoder delivers 200 pulses per revolution on channels A and B with a single Z index for homing. This format supports consistent referencing cycles on machining centers, lathes, indexing tables, conveyors and elevator mechanisms where repeatable zero return is important. The IP65 sealing helps protect internal elements from dust and coolant splash commonly found around machine enclosures and fabrication lines.

A solid 8 mm shaft allows straightforward coupling to motors, lead screws or rollers using standard clamp or jaw style couplings. The two-phase output is suitable for counters, PLC high-speed inputs and motion modules that accept incremental quadrature with index. This configuration is widely used for speed feedback, angle detection and basic position tracking on both legacy and modern control systems.

Built by KOYO in Japan, the TRD-N family is recognized in maintenance shops for dependable operation under tough shop-floor conditions. The RZW variant provides the familiar A, B and Z signal scheme that integrates cleanly into existing wiring looms on many machines, which makes it a practical drop-in replacement unit during corrective maintenance or planned changeouts.

Reference: KOYO-TRD-N200-RZW

Manufacturer: KOYO

Product type: KOYO KOSTAC

Main function: Incremental position and speed feedback with index for homing cycles

Applications: CNC machine tools, conveyors, elevators, general automation, angle and position detection on motion axes

Key technical data: Incremental rotary model with 200 pulses per revolution, two-phase A/B with Z home, 8 mm solid shaft, IP65 dust and splash protection, manufactured in Japan by KOYO Electronics, tested unit supplied with warranty, dispatch typically within 3 days depending on availability.

In day-to-day maintenance this model is commonly sourced to restore axis referencing, recover lost counts from worn encoders and stabilize speed feedback on feed drives and material handling rollers. The compact body and 8 mm shaft simplify field replacement when the original device fails or drifts, helping the team bring the machine back online with minimal adjustment.

Many plants keep one or more units in industrial spare inventory to reduce unplanned downtime. For planned overhauls it is a sensible drop-in option when the existing encoder is the same series or when mechanical dimensions and signal format are matched during retrofit planning.

Each unit is functionally verified by skilled engineers on appropriate encoder test benches or simulators, checking A and B channel integrity and index pulse behavior. Packaging is prepared for industrial shipping with anti-static protection, and a warranty is included for added confidence in your tested unit.

This item can be supplied as an emergency spare part for unexpected failures, and it is suitable for supporting older installations where the original encoder may be an obsolete part. Cnc-shopping can assist with sourcing, and repair service or exchange service may be available depending on condition and evaluation.

Frequently asked questions about KOYO-TRD-N200-RZW:

What signal format does this encoder provide?
It is an incremental model with two phase-shifted channels A and B plus a single Z index pulse per revolution, suitable for homing and directional counting on motion controllers and PLCs.

What is the resolution and how is it used by controllers?
The device outputs 200 PPR. Many controllers use quadrature decoding and may count both edges on both channels, which can yield higher internal counts per revolution depending on the input configuration.

What is the shaft size and typical coupling method?
The unit has a 8 mm solid shaft. It typically connects through a clamp, beam or jaw coupling sized for 8 mm, ensuring proper alignment and minimal runout.

Is it suitable for coolant and dust exposure around CNC machines?
With IP65 protection it is dust tight and resistant to water spray, which covers common coolant mist and splash near enclosures. It is not intended for high-pressure washdown.

How should I confirm electrical compatibility during replacement?
Match the output type and supply requirements to your drive, PLC or counter inputs by checking the device label and the official datasheet. Verify wiring and pinout before power-up to ensure correct channel phasing and index alignment.
