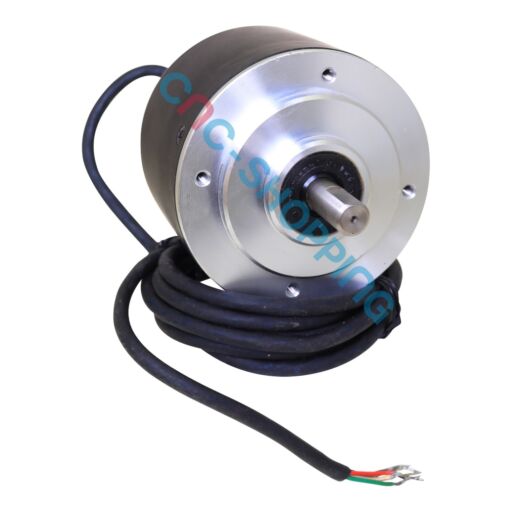

KOYO TRD-G50-R Rotary Encoder

Buy online your KOYO TRD-G50-R Rotary Encoder from UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The KOYO TRD-G50-R is an incremental rotary encoder designed to provide reliable position and speed feedback for CNC machines, servo systems and industrial automation equipment. It supplies incremental pulse signals to servo drives, PLC high-speed counters and motion controllers, supporting accurate axis positioning, speed monitoring and repeatable homing.

This KOYO rotary encoder is suitable for applications where reliable A/B quadrature feedback is required, including CNC lathes, machining centers, indexing tables, conveyors, packaging equipment and general motion-control systems. It can be installed on servo motor shafts, ballscrews, line shafts and other rotating machine components requiring incremental feedback.

The TRD-G50-R provides A and B output signals for incremental position and speed detection. The supplied wiring information specifies Green = OUT A, White = OUT B, Red = DC +10–30 V, Black = 0 V and Shield = case ground. The Yellow wire is not connected. The exact pulse count, input circuitry and mechanical configuration should be verified against the existing encoder and controller before replacement.

Designed for industrial environments, the compact TRD-G form factor is suitable for CNC and automation installations where space is limited and reliable feedback is essential. Matching the complete reference, wiring, mounting arrangement and controller input requirements helps ensure a straightforward replacement and stable signal acquisition.

This KOYO encoder is a practical replacement unit, spare part or CNC replacement component for machines experiencing homing errors, unstable speed feedback, incorrect position counts or encoder-related alarms. Keeping a tested unit in industrial spare inventory can help reduce downtime on legacy CNC equipment and production machinery.

Each unit supplied by Cnc-shopping can be function tested on dedicated encoder test benches or motion simulators to verify signal quality, phase relationship and index operation where applicable. Units are securely packaged using ESD-safe protective materials and supplied with a commercial warranty, with fast dispatch depending on availability and worldwide shipping.

The KOYO TRD-G50-R can also serve as an emergency spare for older CNC and automation installations. Cnc-shopping can assist with sourcing obsolete parts, as well as repair services and exchange services when available, helping maintenance teams keep existing equipment operational.

Frequently asked questions about TRD-G50-R:

Is this model incremental or absolute?
The TRD-G series is commonly used as an incremental feedback solution that provides quadrature signals for position and speed. Confirm your exact variant against the machine documentation to match pulse count and output interface.

What signals are typically available on this encoder?
Most TRD-G units provide A, B and a reference index channel used for homing. Check your wiring diagram for channel levels and pin assignments before replacement.

Can it replace another encoder in the same series?
It can be a drop-in replacement when shaft dimensions, mounting, output stage and counts-per-revolution match the original. Always verify suffix codes and the controller’s input requirements to avoid count or alarm mismatches.

What should be checked before installation?
Confirm the mechanical coupling, alignment, CPR value and signal type accepted by the drive or PLC counter. Use shielded cabling and proper grounding practices to maintain clean A/B/Z signals and reduce electrical noise on the production floor.

Do I need to change parameters in the controller after replacement?
If the new unit matches the original CPR and signal interface, no parameter changes are typically needed. When CPR differs, adjust related drive or PLC parameters according to the controller manual.
