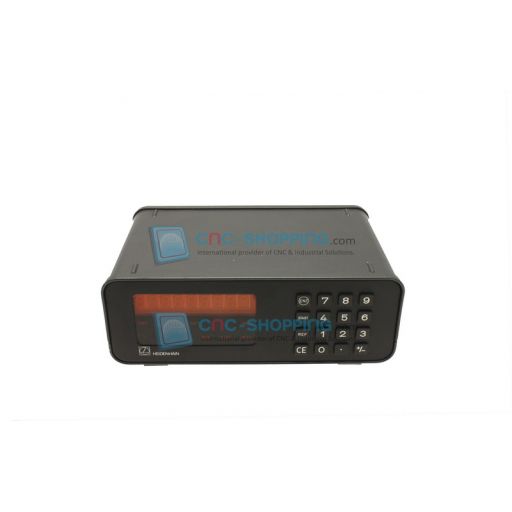

HEIDENHAIN VRZ 403 Position display unit
Starting at €500.00 €500.00
Product condition Availability Warranty
Price
HEIDENHAIN VRZ 403 (VRZ403) position display unit for sale online on Cnc-shopping to replave your defective module. Output for this HEIDENHAIN VRZ 403 (Id.Nr 230024 01) is through V.24/RS-232C. Counter VRZ 403 in conjunction with gauges MT 12/25/60/101 constitute a HEIDENHAIN-METRO digital length measuring unit. In addition to the gauges, other HEIDENHAIN linear encoders with 10 um or 20 um grating pitch (e. g. LID 300, LS 703/704, LS 403/404, ULS 300, etc...) as weil as HEIDENHAIN rotary encoders with sinusoidal output Signals are also suitable for connection. The output Signals of the gauges are amplified, interpolated within the counter and subsequently counted in accordance with the sign. The measured value is displayed via a seven-digit 7-Segment digital display.
The counters are provided with the following functions:
- Zero reset
- Datum set
- Reference mark evaluation REF
- mm/inch calculator
- Selectable display step
- Selectable counting direction
- Classifying with 2 limit values
- Minimum/Maximum acquisition
- Subtraction of Maximum and Minimum (differente)
- Display stop
- External Operation
- Output for classifying state
This HEIDENHAIN VRZ 403 (Id.Nr 230024 01) comes with a warranty.
Digital readouts for manual machine tools increase your productivity. You save time, increase the dimensional accuracy of the finished workpiece and enjoy userfriendly operation. It plays no role whether you have equipped a new or used machine with a digital readout. HEIDENHAIN digital readouts can easily be retrofi tted to any model of machine or type of equipment, whatever the application and number of displayed axes. Practice-oriented functions and cycles are available for various applications. The distance-to-go display feature with graphic positioning aid allows you to approach the next nominal position quickly and reliably simply by traversing to a display value of zero. HEIDENHAIN VRZ 403 (Id.Nr 230024 01)
Availability | Available in 5 to 8 days |
---|---|
Weight | 5.00 kgs |
