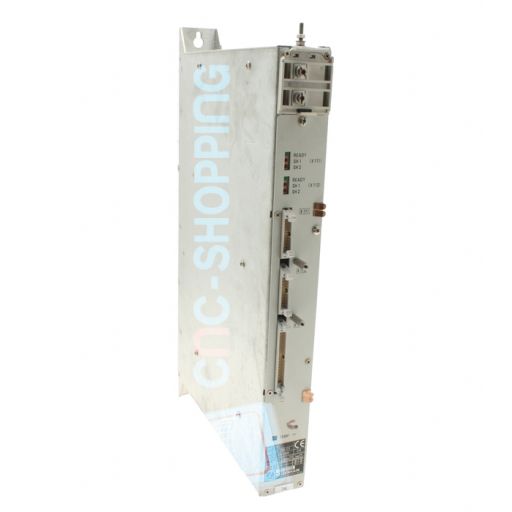

HEIDENHAIN UM121D Servo Module Inverter Id.Nr. 392319-01
Starting at €2,210.00 €2,210.00
Buy online your HEIDENHAIN UM121D Servo Module Inverter Id.Nr. 392319-01 reference UM121D from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.
The HEIDENHAIN UM121D is a compact two-axis servo inverter used in TNC-controlled machine tools to power and regulate matched QSY synchronous AC servo motors. Installed in the drive cabinet, it serves as the axis power stage in the CNC loop and is commonly sourced as a replacement unit or spare part for maintenance and retrofit tasks. The identifier Id.Nr. 392319-01 is essential for selecting the correct variant during procurement.
This drive interfaces between the CNC control and the motor windings, managing current loops, torque commands and dynamic braking for two feed axes. The rating 2x9A/18A indicates dual channels with nominal and peak current capability suitable for typical feed drives on milling, drilling and grinding machines using HEIDENHAIN motion systems.
In the field it is paired with HEIDENHAIN QSY servo motors where stable current control supports smooth running and low torque ripple. The unit is frequently found in multi-axis installations aligned with TNC control platforms, where identical modules are used across X, Y or auxiliary axes for simplified service and inventory.
When replacing a faulty unit, matching the printed model and 392319-01 code helps ensure the same electrical rating and connector layout. This approach reduces commissioning effort and helps restore axis performance without redesigning harnesses or cabinet layouts.
UM121D manufactured by HEIDENHAIN in Germany with identification 392319-01.
Two-axis servo inverter for QSY AC servo motors used on feed axes of CNC machine tools.
Rated output channels 2x9A/18A supporting nominal and peak current demand during rapid moves and acceleration.
Used with HEIDENHAIN TNC-driven machines where consistent axis control and smooth motion are required.
Suitable as a CNC replacement component for repair, retrofit or spare inventory strategies on legacy installations.
Warranty supplied with the unit, with fast dispatch depending on availability, typically within 3 days.
On production floors the UM121D is installed to recover axis control when an existing drive reports faults such as overcurrent, amplifier errors or unstable following conditions. Keeping a tested unit in industrial spare inventory allows quick field replacement, limiting machine downtime and avoiding extended diagnosis during urgent breakdowns.
Maintenance teams often choose this model for like-for-like replacement on X and Y axes powered by QSY motors. Using the same reference keeps wiring, cabinet spacing and heat dissipation consistent, which simplifies the swap during night or weekend interventions.
Units can be verified by skilled engineers on CNC simulators with servo motors to check channel operation, current response and fault handling before packing. Drives are secured in ESD-safe packaging with protective foam for worldwide shipping, and the item comes with a warranty for added assurance.
This module is frequently required as an emergency spare to keep older TNC-based machines running. Cnc-shopping can support sourcing of obsolete parts and may provide repair service or exchange service options when suitable, helping extend machine lifetime without a full retrofit.
