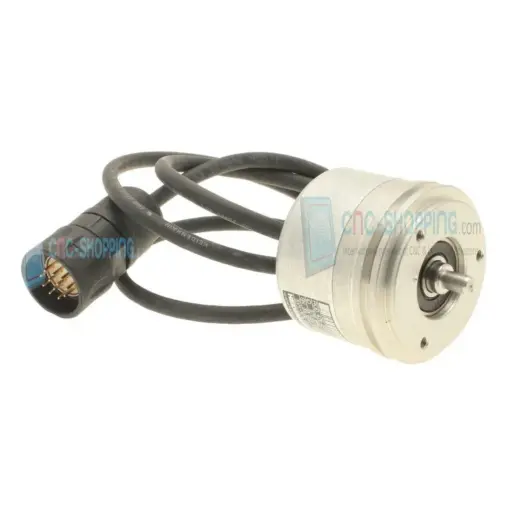

HEIDENHAIN ROD426 2000 Rotary encoder ID 376 846-05

Buy online your HEIDENHAIN ROD426 2000 Rotary encoder ID 376 846-05 from UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The HEIDENHAIN ROD426-2000, identified by reference ID 376846-05, is a 2,000-pulse-per-revolution incremental rotary encoder designed to provide position and speed feedback on CNC machine tools and industrial automation equipment. It is a practical replacement unit and industrial spare part for compatible installations.

This HEIDENHAIN incremental encoder features a TTL output signal, a maximum scanning frequency of 300 kHz, and a 5 V (±10%) power supply. Its solid shaft measures 10 mm in diameter and 20 mm in length and is combined with a 58 mm Synchro flange, featuring a 50 mm centering collar and a 42 mm bolt circle with three M4 mounting holes.

The ROD426-2000 offers an IP64 protection rating and an operating temperature range of -40 to +100°C. It is equipped with a 12-pin M23 male connector, a 0.20 m cable with an outlet suitable for axial or radial use, and a pin configuration according to diagram D294999.

Manufactured in Germany, this HEIDENHAIN encoder is suitable for CNC lathe axes, machining centers, grinding machines, rotary tables, and auxiliary drives. It is a practical CNC replacement component and emergency spare for maintenance and retrofit applications. Before installation, it is essential to verify the complete reference, mechanical dimensions, connections, and electrical compatibility with the existing system.

Each unit supplied by Cnc-shopping can be inspected and tested on appropriate test benches to verify incremental signal quality and reference signal integrity. Products are packed in protective packaging suitable for industrial shipping and covered by a commercial warranty under our standard terms.

Cnc-shopping offers the HEIDENHAIN ROD426-2000 – ID 376846-05 with worldwide shipping and an estimated 3-day dispatch time, subject to availability. We also assist with sourcing obsolete parts and may offer repair, standard exchange, or refurbished-unit solutions when available.

Frequently asked questions about ROD426-2000:

Is this an incremental or absolute model?
It is an incremental rotary encoder from the HEIDENHAIN ROD series. It provides A and B tracks with a reference function for homing and direction detection.

How many counts per revolution does it provide?
This variant is rated at 2000 increments per revolution. Effective resolution at the control can be higher when interpolation is applied by the drive or CNC.

What should be checked before using it as a drop-in replacement?
Verify the ID 376 846-05 against your machine list to confirm shaft diameter, flange style, connector or cable execution and the required electrical interface and pinout.

Where is it commonly installed on machine tools?
It is used on feed axes, rotary axes and auxiliary drives where reliable incremental feedback is needed for precise positioning and stable speed control.

Do you support repair or exchange programs?
Yes, depending on the unit condition and availability, repair service and exchange service can be proposed to help reduce downtime and manage spare inventory.
