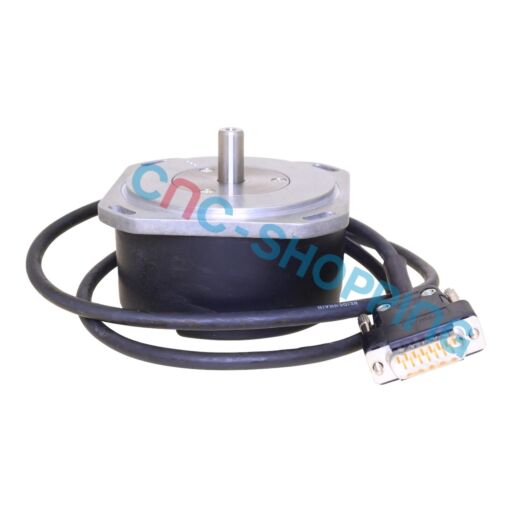

HEIDENHAIN ROD 280.0003-9000 Rotary Encoder Id.Nr 288 180-09 DB15 Connector

Buy online your HEIDENHAIN ROD 280.0003-9000 Rotary Encoder from UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

This HEIDENHAIN ROD 280 incremental rotary encoder is designed to provide precise position and speed feedback for CNC machine axes and spindles. It supplies incremental feedback signals to the CNC control or servo drive, supporting accurate positioning, repeatable referencing and stable motion control.

The ROD280.0003-9000 is identified by Id.Nr 288 180-09 and features a DB15 connector interface. Its solid-shaft design with integrated bearings makes it suitable for demanding CNC machine tools, milling machines, turning centers, grinders and rotary positioning systems.

This HEIDENHAIN encoder is commonly used as a replacement unit or spare part when an existing encoder causes feedback alarms, unstable servo operation or referencing problems. The original Id.Nr, electrical interface, mechanical mounting and line count should be verified before replacement to ensure compatibility with the existing CNC system.

The encoder provides the incremental feedback required for closed-loop axis and spindle control, helping the machine maintain accurate position and speed during rapid movements, interpolation and machining operations. It is particularly suitable for retrofit projects, preventive maintenance and emergency replacement on legacy CNC equipment.

Each unit can be tested on appropriate CNC encoder test equipment by skilled technicians to verify signal behavior and reference mark detection where applicable. Protective packaging is used for industrial shipping, and a commercial warranty is provided according to our standard terms.

Cnc-shopping can supply the HEIDENHAIN ROD280.0003-9000 as a tested unit, spare part or CNC replacement component, depending on availability. We can also assist with obsolete parts, repair service and exchange service, with worldwide shipping and fast dispatch depending on stock.

Frequently asked questions about ROD280.0003-9000:

How do I confirm compatibility with my machine?
Match the Id.Nr 288 180-09, connector type DB15, electrical interface and the required line count against your existing encoder or machine manual. If these parameters align, this unit is typically a drop-in replacement.

What should I check mechanically before ordering?
Verify shaft diameter, flange or mounting style, permissible coupling type and installation depth. Confirm that the connector orientation and cable routing suit your cabinet layout.

Does this model provide a reference mark for homing?
ROD 280 encoders are incremental and include a reference mark on supported variants. Confirm the reference mark configuration on your original unit to ensure identical homing behavior after replacement.

Can this replace other ROD 280 suffix variants?
Many ROD 280 versions are mechanically similar, but the suffix and Id.Nr define electrical and mechanical details. Always match the Id.Nr and interface to avoid signal or mounting mismatches during installation.

What if my drive expects a different electrical interface?
If your drive or control expects another signal type or supply, choose the exact matching ROD 280 variant. Our team can assist in identifying the correct model using your encoder label and control documentation.
