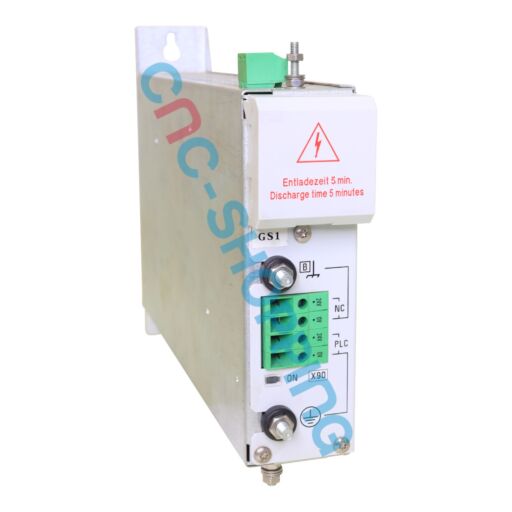

Heidenhain PSL 130 Power Supply Id.Nr. 575 047-04

Buy online your Heidenhain PSL 130 Power Supply Id.Nr. 575 047-04 from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The HEIDENHAIN PSL 130 is a regulated power supply module designed for HEIDENHAIN CNC control systems. Identified by Id.Nr. 575 047-04, it provides stable DC power for control electronics, operator interfaces, and feedback circuits, making it an ideal replacement unit or spare part for the maintenance and refurbishment of HEIDENHAIN-controlled machine tools.

Designed for installation in CNC control cabinets, the PSL 130 supplies regulated DC voltage to the control rack, CPU, I/O modules, operator panel electronics, and position feedback interfaces. Stable power delivery helps prevent unexpected controller resets, undervoltage faults, and communication errors, ensuring reliable machine operation and uninterrupted production.

The module operates with an input voltage of 400 to 750 V AC (4 A, 50/60 Hz) and provides a 24 VDC output. It delivers 500 W of rated output power with a maximum total power of 750 W, making it suitable for HEIDENHAIN control platforms requiring this specification. Its mechanical format and connectors comply with HEIDENHAIN standards, allowing straightforward replacement when the Id.Nr. 575 047-04 matches the original installed unit.

The PSL 130 is widely used for CNC control repairs, electrical cabinet refurbishments, retrofit projects, and preventive maintenance on legacy HEIDENHAIN installations. Maintenance teams frequently replace this module when unstable DC output, random controller reboots, or HMI power failures indicate a defective power supply. Keeping a tested replacement unit in stock helps reduce machine downtime and speeds up service interventions.

Each unit is functionally tested by qualified engineers on dedicated HEIDENHAIN test equipment to verify output voltage stability and overall performance before shipment. Modules are packaged in ESD-safe protective materials for secure industrial transport and are covered by the Cnc-shopping warranty. Repair, exchange, and obsolete part sourcing services may also be available to help extend the service life of legacy HEIDENHAIN CNC systems.

Frequently asked questions about PSL130:

How can I confirm compatibility with my HEIDENHAIN control cabinet
Match the label on your faulty module with PSL 130 and the exact Id.Nr. 575 047-04. Cross check your machine’s electrical diagrams or parts list where the PSL 130 is specified for the control rack.

Can PSL 130 replace other PSL variants
Use like for like replacements and follow the same Id.Nr. unless the machine builder or HEIDENHAIN documentation lists an approved alternate. Mixing variants without confirmation can lead to connector or rating mismatches.

Does the power supply require parameter setup after installation
No parameters are needed for normal use. Once mounted and wired as per the original installation the module supplies the required DC rails to the control.

What is included with the unit
The offer concerns the power supply module. Cables, mounting hardware and external accessories are normally reused from the existing installation unless specifically requested.

Is this suitable for retrofit projects
Yes, when the retrofit design specifies PSL 130 with Id.Nr. 575 047-04 in the control power section. Verify mechanical fit and connector alignment against your cabinet layout before ordering.
