Heidenhain LS-603C ML 1140mm Sealed Linear Encoder

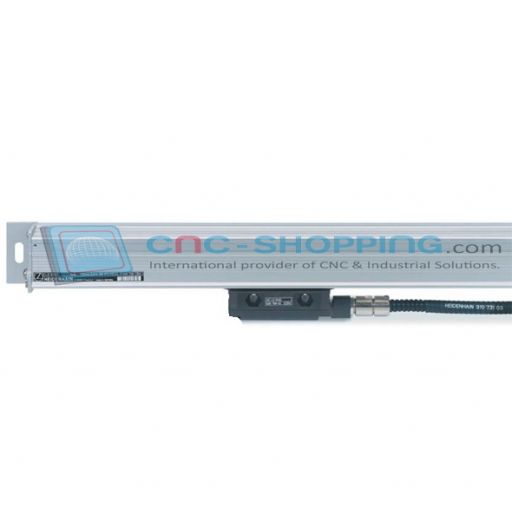

HEIDENHAIN LS-603C ML 1140mm Sealed linear encoder as a Glass scale (DIADUR) distance-coded for sale online on Cnc-shopping International website. This is a HEIDENHAIN Linear encoder type Sealed linear encoder with a measuring length of 1140mm protected with an aluminum housing and elastic sealing lips on the scale protecting from dust, chips and splash fluids and are ideal for operation on CNC Machine tools. HEIDENHAIN LS 603C scales are mounted with a Head reader type HEIDENHAIN LS603C. This HEIDENHAIN LS603 ML 1140mm Scale comes with a warranty.

Please tell us, when you order, the manufacturer identification number Id.Nr. of your reader head HEIDENHAIN : Id.Nr. 253 329-33 or Id.Nr. 326 799-02

When mounted in accordance with instructions the Linear encoder HEIDENHAIN LS-603C is protected against dust or splash water as per IP53.
1. A special protection of the encoder should be provided in the form of a cover : if there is danger of damage to the encoder and the connection cable by chips or hot metal particles (connection cable with metal armour as standard feature), in the presence of direct continuous wetting with coolant/lubricant charges inb closed machines, in case of heavy dust concentration in the encoder area. HEIDENHAIN LS-603C ML 1140mm
