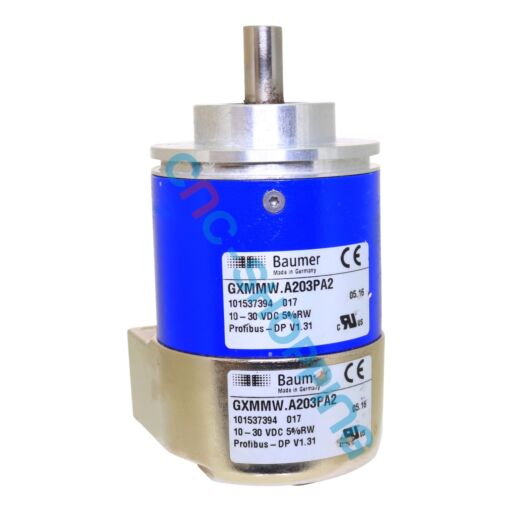

BAUMER IVO GXMMW.A203PA2 Absolute encoder

Buy online your BAUMER IVO GXMMW.A203PA2 Absolute encoder from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The BAUMER IVO GXMMW.A203PA2 is an absolute rotary encoder designed for closed-loop motion control applications on CNC machines and industrial automation equipment. It provides absolute position feedback, enabling the control system to determine the exact angular position immediately after power-up without requiring a homing procedure.

By delivering a coded absolute position value, this encoder eliminates the need for re-homing after power interruptions or emergency stops. Integrated into CNC systems, it communicates with servo drives and motion controllers to maintain accurate position tracking during machine start-up and recovery, helping to reduce faults caused by missed counts or lost references.

The GXMMW.A203PA2 is commonly used on machining centers, CNC lathes, rotary tables, indexing heads, tool changers, and other industrial automation systems where precise and repeatable positioning is essential. When replacing an existing unit, matching the complete GXMMW.A203PA2 reference ensures mechanical and electrical compatibility while preserving the original mounting arrangement, connectors, and cabling.

Manufactured in Germany, this encoder belongs to the BAUMER IVO GXMMW series, which is recognized for its robust construction, reliable performance, and stable feedback signals. Its design is intended for demanding industrial environments and continuous production applications.

This version supports a maximum operating speed of 6000 rpm and operates with a supply voltage ranging from 10 to 30 VDC. It provides a digital output through a PROFIBUS-DP interface and features a solid shaft with a diameter of 10 mm. The encoder offers a resolution of 16 bits in multi-turn operation and 13 bits in single-turn operation. Its IP54 protection rating makes it suitable for typical industrial conditions, and its overall width is 58 mm.

In the field, this reference is frequently sourced as a replacement component when axis alarms, homing errors, or positioning drift indicate a failure of the rotary feedback system. Keeping a spare unit in stock can significantly reduce machine downtime and support a rapid return to production, especially on critical equipment operating around the clock.

Each unit can be tested by qualified technicians to verify position coding accuracy, signal integrity, and connector pin configuration. Products are packaged using protective materials suitable for industrial transportation. Tested units are covered by the standard warranty provided by Cnc-shopping. For older installations, Cnc-shopping may also assist in sourcing obsolete components and, where available, provide repair or exchange services to help extend the service life of existing CNC equipment.

Frequently asked questions about GXMMW.A203PA2:

Does this encoder keep position after power-off?
Yes. As an absolute encoder it provides a coded position value, so the controller knows the shaft angle on power-up without a homing move.

Is GXMMW.A203PA2 a direct drop-in for my machine?
It is a drop-in replacement unit when the full code on your failed encoder matches. Always confirm mechanical coupling, connector type and output interface against your existing unit before ordering.

Which CNC systems use this BAUMER IVO model?
It is used with motion controllers and servo drives that accept absolute feedback from the specific interface of this variant. Check the machine manual and the encoder label to verify compatibility.

Can you support refurbishment or exchange?
Depending on condition and availability, refurbished units and exchange service may be arranged to speed repair turnaround. Contact our team with the full code and photos of the nameplate for evaluation.
