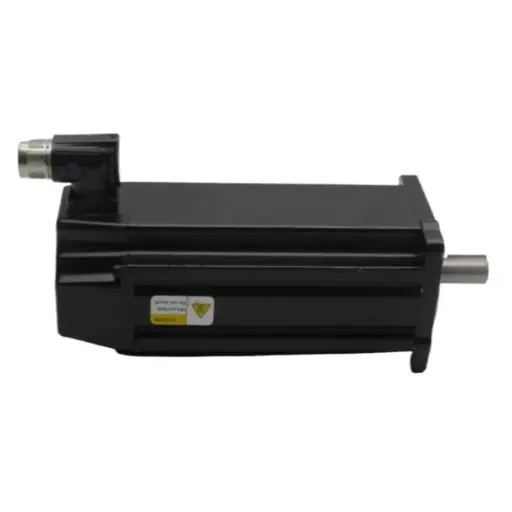

ALLEN BRADLEY VPL-B1003T-PJ14AA Inverter Duty AC Servo motor 7000rpm 1.77-2.37kW + Brake

Buy online your ALLEN BRADLEY VPL-B1003T-PJ14AA Inverter Duty AC Servo motor from our UK e-store Cnc-shopping UK, specialist in CNC machine-tools spare parts.

The ALLEN BRADLEY VPL-B1003T-PJ14AA is a low-inertia AC servo motor designed for high-speed motion control in CNC machine tools and industrial automation systems. Engineered for use with Allen-Bradley Kinetix servo drives, it delivers fast acceleration, accurate positioning, and stable velocity control, making it an ideal replacement motor or spare part for demanding motion applications.

Operating on a 400 V supply, the motor provides a continuous power range of 1.77 to 2.37 kW and a maximum speed of 7000 rpm. Its low-inertia design enables rapid acceleration and deceleration while maintaining precise closed-loop performance. The integrated holding brake securely retains the axis when power is removed, making the motor particularly suitable for vertical axes and applications requiring safe position holding.

The VPL-B1003T-PJ14AA is commonly installed on CNC feed axes, indexing systems, packaging equipment, assembly machines, material handling systems, and tool handling applications. Its standardized mounting dimensions and cable layout simplify installation and make it well suited for both direct replacement and retrofit projects where minimal machine modifications are desired.

Maintenance teams frequently select this model to replace motors affected by bearing wear, encoder failures, or brake degradation, allowing production to resume quickly while minimizing downtime. Keeping a compatible VPL-B servo motor in spare inventory provides an effective solution for emergency repairs and preventive maintenance.

Each motor is functionally tested by qualified engineers using dedicated servo test benches and CNC simulators to verify feedback operation, brake performance, thermal stability, and smooth operation throughout the speed range. Units are carefully packaged to protect the shaft and connectors during transport and are covered by the Cnc-shopping warranty. Repair, exchange, refurbished unit, and obsolete part sourcing services may also be available to help extend the operating life of Allen-Bradley motion systems.

Frequently asked questions about VPL-B1003T-PJ14AA:

Which Kinetix drives can this motor work with?
It is designed for integration with Allen-Bradley Kinetix servo platforms. Select the drive by continuous current and voltage class that match the motor’s winding and application duty. Check feedback type and connector style to ensure a direct match.

Does the integrated brake support vertical axis holding?
Yes, the factory brake is intended for holding torque when power is removed. Size the brake to the load and include a mechanical safety factor if the axis carries heavy tooling or fixtures.

Is it suitable as a drop-in replacement for an existing VPL-B1003 motor?
In most cases yes, provided the suffix options align for shaft, feedback and connectors. Verify the exact code against the installed unit and reuse the original drive parameters as a baseline, then fine tune during run-up.

What speed can it safely reach in continuous duty?
The rated mechanical speed is 7000 rpm. Final usable speed depends on load inertia, drive limits and application duty cycle. Ensure adequate cooling and follow the drive’s current limits.

Can Cnc-shopping supply a tested or refurbished unit?
Depending on inventory, you can request a tested unit or a refurbished unit. We also support repair service and exchange service to keep downtime and repair turnaround under control.
