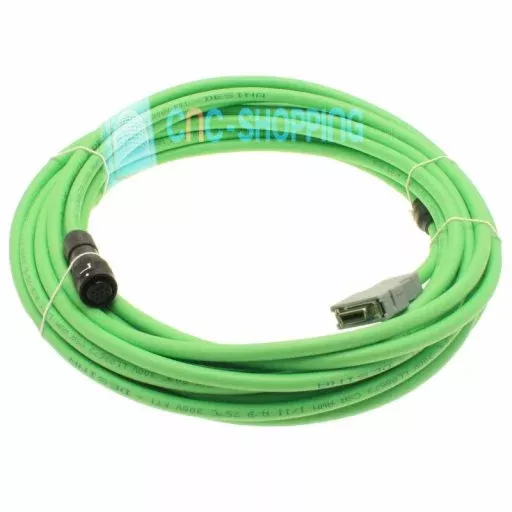

A660-2005-T506/L5R003 Fanuc Pulse coder cable servo i series 5m STRAIGHT

Starting at €170.00 €170.00

Product condition Availability Warranty
Price
New
Ships from: FRANCE Warehouse
stock available Immediate shipment Estimate my delivery
12 months Warranty Replacement The product's warranty covers replacement with the same or a similar product for the entire contractual period.
€170.00 €170.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your A660-2005-T506/L5R003 Fanuc Pulse coder cable servo i series 5m STRAIGHT reference A660-2005-T506/L5R003 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

This FANUC pulse coder feedback cable is used on servo i series installations to carry encoder signals between the motor-mounted pulse coder and the CNC/drive side. In the field, a stable pulse coder connection is one of the first things checked when you see axis alarms, position drift, intermittent following error, or random servo trips caused by feedback dropouts.

Built as a straight cable assembly with a 5 m length, this part is typically selected when the original harness has been damaged by repeated cable carrier motion, coolant contamination, or connector strain at the motor end. Keeping the correct OEM reference on hand helps avoid pinout mistakes that can occur with improvised encoder leads.

On many FANUC axis packages, the pulse coder line is sensitive to poor contact quality and shielding issues. Replacing a worn cable with the correct assembly is often the fastest way to restore a clean feedback path, especially on machines that have seen years of flexing inside drag chains or tight routing through cabinets and conduit.

This reference is commonly sourced as a CNC replacement component during troubleshooting when the axis behaves normally at low speed but faults under acceleration, or when alarms appear only after warm-up and vibration. A correct-length harness also reduces excessive coiling inside the electrical cabinet, which helps keep routing clean and serviceable for future maintenance.

Reference: A660-2005-T506/L5R003

Manufacturer: FANUC

Product type: FANUC Encoder signal cable

Main function: Pulse coder feedback cable for FANUC servo i series, used to transmit encoder signals between the motor pulse coder and the CNC/drive side for accurate axis position and speed feedback. (HIROSE from the servo amplifier o the Fanuc pulse coder type A860)

Applications: FANUC servo i series axis feedback wiring on CNC machine tools and automation equipment, field replacement during encoder signal faults, intermittent feedback alarms, or harness wear in cable carriers.

Key technical data: FANUC pulse coder cable assembly A660-2005-T506/L5R003, straight black connector configuration, 5 meters length, supplied under SKU A660-2005-T506#L5R003, manufactured in Japan, intended for servo i series pulse coder connections.

In maintenance departments, this cable is typically replaced after visual findings such as cracked outer jacket, crushed sections, coolant ingress, or loose connector locking. It is also a practical swap part during fault isolation, because a marginal pulse coder lead can mimic encoder, drive, or motor problems and waste troubleshooting time.

For rebuild shops and OEM support teams keeping older FANUC packages running, the correct feedback harness is often part of the standard spare inventory. Stocking the right length and connector style helps get a machine back into production quickly without reworking wiring or risking signal integrity issues.

Each unit can be checked on appropriate CNC test benches or simulators by skilled engineers to confirm continuity and basic signal integrity before dispatch. Industrial packaging is used to protect the connectors and cable jacket during transport, and warranty terms apply according to the product condition and sales agreement.

This Encoder cable can also serve as an emergency spare for legacy FANUC servo i series installations where original harnesses are no longer easy to source.

Frequently asked questions about A660-2005-T506/L5R003:

Is this Fanuc A660-2005-T506/L5R003 cable used for motor power or for Encoder signal feedback?
This is a pulse coder cable used for encoder feedback signals, not a motor power lead. It is intended for the feedback path required by FANUC servo control to maintain correct position and speed information.

What does the 5 m length and straight style mean in practice?
The 5 m length is chosen to match the original routing from the motor area to the cabinet without stretching or excessive slack. The straight configuration refers to the connector orientation (encoder side, black connector which you connect to yoru Fanuc A860 Pulse coder).
