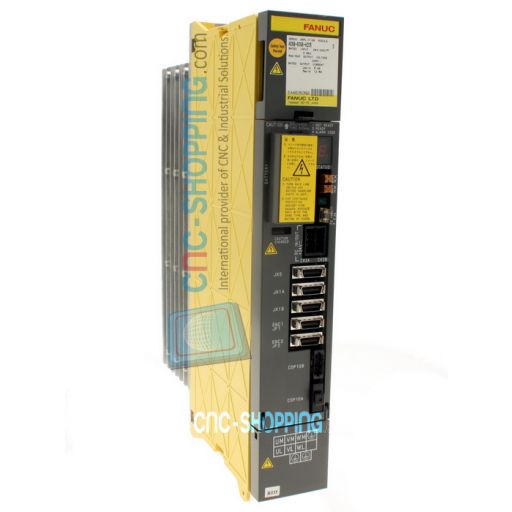

A06B-6096-H205 Fanuc Servo Amplifier Alpha SVM 2-20/40

Rating:
100% of 100

Starting at €1,500.00 €1,500.00

Manufacturer's Suggested Retail Price (11-2026): €4,980.00
Product condition Availability Warranty
Price
Exchange service
Ships from: FRANCE Warehouse
stock available Immediate shipment Estimate my delivery
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€1,500.00 €1,500.00
Your savings on Manufacturer's suggested retail price: €3,108.00
Refurbished
Ships from: FRANCE Warehouse
stock available Immediate shipment
3 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€1,800.00 €1,800.00
Your savings on Manufacturer's suggested retail price: €3,180.00
New
Ships from: FRANCE Warehouse
stock unavailable Out of stock
12 months Warranty Replacement The product's warranty covers replacement with the same or a similar product for the entire contractual period.
€2,200.00 €2,200.00
Your savings on Manufacturer's suggested retail price: €2,780.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your A06B-6096-H205 Servo Amplifier Alpha SVM 2-20/40 reference A06B-6096-H205 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

The FANUC Alpha SVM module is a dual-axis servo amplifier used across FANUC-driven machine tools to regulate current and torque for two feed axes. As a CNC replacement component and spare part, it restores axis drive performance in production machines that rely on the 6096 SVM family.

This unit operates within the FANUC Alpha servo system, taking the regulated DC link from the matching Alpha Power Supply Module and delivering controlled three-phase output to the servo motors. The 2-20/40 variant provides two channels, labeled L and M, with capacity suited to light and medium-duty axes commonly found on machining centers and turning equipment.

Electrical performance aligns with FANUC’s published data for this model. Rated input is 283-325 VDC from the DC bus with a power class of 3.9 kW. Maximum output voltage is 230 VAC with rated phase current of 5.9 A on the L-axis and 12.5 A on the M-axis. When matched with appropriate Alpha series motors, it provides stable current regulation and reliable torque response for precision axis movement.

Mechanical layout and connectors follow the standard 6096 SVM footprint, which helps simplify field replacement. In most existing installations it serves as a drop-in replacement unit for the same code, reducing wiring changes and keeping recommissioning time under control.

Reference: A06B-6096-H205

Manufacturer: FANUC

Product type: FANUC Servo Drive 6096

Main function: Dual-axis servo amplification for FANUC Alpha feed motors in CNC machines

Applications: Feed axes on machining centers and lathes, general positioning axes on industrial machines using FANUC Alpha drives

Key technical data: Alpha SVM 2-20/40 model, DC bus input 283-325 V, power class 3.9 kW, max output 230 VAC, rated output current 5.9 A (L) and 12.5 A (M), two-axis configuration compatible with the 6096 family mechanical and electrical interface, made in Japan.

In maintenance practice this module is sourced as a replacement unit when the installed drive reports alarms, overcurrent trips or fails under load. Many plants keep one as a stocked spare to shorten machine downtime during unplanned stops. Matching the code and rating ensures quick swap with minimal adjustments, which helps return the machine to service faster.

For planned overhauls and retrofits, this model is commonly selected to maintain continuity with existing motors and the installed FANUC control platform. Using the correct SVM rating supports long-term serviceability and keeps legacy equipment productive without major re-engineering.

Each drive is a tested unit, verified on CNC simulators with servo motors by skilled engineers. Packaging is designed for industrial transit with ESD protection and secure cushioning. Units are supplied with a warranty, and worldwide shipping is available with fast dispatch depending on inventory.

This model is suitable as an emergency spare part to reduce unexpected downtime. Cnc-shopping also supports sourcing of obsolete parts within the FANUC range and can offer exchange service or repair service when appropriate, helping extend the working life of older CNC installations.

Frequently asked questions about A06B-6096-H205:

What does the 2-20/40 designation indicate on this module?
It identifies a dual-axis amplifier with two different power classes. In practical terms the L channel is rated at 5.9 A and the M channel at 12.5 A, which should be matched to the corresponding Alpha servo motors on each axis.

Which power module should be used with this drive?
Use a compatible FANUC Alpha Power Supply Module that provides a DC link in the 283-325 V range and the correct connector set for the 6096 SVM family. Always verify the DC bus rating and connector layout on the installed cabinet before replacement.

Is this a drop-in replacement for the same code in an existing cabinet?
Yes, when replacing an installed A06B-6096-H205 the mechanical footprint and connectors are the same, which supports a straightforward field replacement. Confirm the rating label and wiring references match your original unit.

What machine types typically use this variant?
It is commonly found on feed axes of small and mid-sized machining centers and lathes using FANUC Alpha drives. Select it where the axis current demands align with 5.9 A for the L channel and 12.5 A for the M channel.
