A06B-6096-H106 Servo Amplifier Module SVM 1-130
Starting at €1,250.00 €1,250.00
Buy online your A06B-6096-H106 Servo Amplifier Module SVM 1-130 reference A06B-6096-H106 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

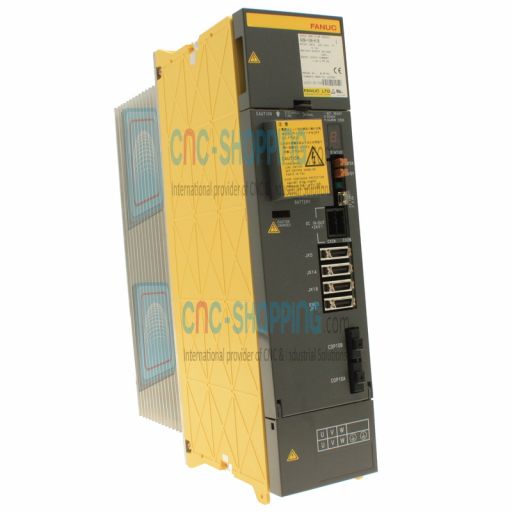

The FANUC SVM unit in the 6096 family is a single-axis servo amplifier designed for Alpha series AC servo motors. This module handles axis power conversion from the shared DC bus and communicates with the CNC over the FANUC Serial Servo Bus (FSSB), making it a dependable CNC replacement component for machine tools running Alpha drives.
The A06B-6096-H106 is an SVM 1-130 variant used where higher axis current is required. In typical FANUC Alpha systems it receives DC from the power supply module and outputs three-phase power to the motor while managing dynamic braking and regeneration. Feedback is processed through the Alpha serial encoder chain via the CNC, ensuring closed-loop positioning and stable axis control.
This module is commonly installed on machining centers, turning centers, grinders and EDM machines built around FANUC Alpha drive trains. It is frequently paired with the Alpha 22 motor class when the machine’s mechanical load and duty cycle call for this rating. The SVM’s FSSB interface simplifies drop-in replacement on controls equipped with FANUC fiber-optic servo links, provided the power class and motor pairing match the original build.
Mechanical and electrical fit follow the standard Alpha rack layout. The unit shares the DC link with the associated FANUC power module, and the mounting pattern, busbar connections and fiber ports align with the typical Alpha cabinet arrangement. For service work and retrofits, technicians usually confirm motor current class, FSSB topology and brake circuitry before installation to maintain proper axis readiness.
Reference: A06B-6096-H106
Manufacturer: FANUC
Product type: FANUC Servo Drive 6096 6097 SVM
Main function: Single-axis Alpha-series AC servo amplifier with FSSB interface for precision axis control
Applications: Axis drives on FANUC Alpha-equipped machining centers, lathes, grinders and EDM machines using compatible Alpha motors
Key technical data: SVM 1-130 single-axis module for Alpha motors, typically used with the Alpha 22 class. FSSB fiber-optic communication with FANUC CNC. Shares DC bus with FANUC power supply module. Manufactured in Japan. Supplied as a replacement unit with warranty. Each tested unit verified on FANUC rigs with Alpha motors and a FANUC CNC before dispatch.
In maintenance environments this model is sourced as a spare part to replace a failed axis drive that triggers VRDY off or axis fault conditions. It is a straightforward field replacement when the original SVM rating and FSSB network remain unchanged. Keeping a stocked replacement unit reduces machine downtime and supports preventive strategies on older lines that still run Alpha modules.
All Servo drives are function-tested by skilled engineers on FANUC CNC simulators with matching Alpha servo motors, checking enable sequence, current loop behavior and FSSB communication. Units are packed for industrial transport with ESD and shock protection. A warranty is included. Dispatch is available from stock depending on inventory, with worldwide shipping options.
For older installations this component can serve as an emergency spare or refurbished unit to keep legacy FANUC equipment running. Cnc-shopping can assist with repair service or exchange service on request, helping extend the service life of machines that rely on the Alpha drive platform.
Common FANUC alarms related to this Fanuc A06B-6096-H106 SVM module:
Module display alarms (on the SVM):
ALM 01 - Overcurrent in the power section
ALM 02 - DC bus undervoltage condition
ALM 03 - Heatsink temperature overheat
ALM 04 - Main circuit fuse blown or power fault
ALM 05 - Amplifier overload or sustained overcurrent
ALM 06 - Regenerative circuit fault or excessive regen energy
ALM 07 - DC bus overvoltage detected
CNC-side servo alarms commonly seen with amplifier or feedback issues:
401 - Servo alarm VRDY OFF, axis not ready
414 - n-th axis fault reported by amplifier or FSSB link
417 / 419 - Absolute or serial pulse coder feedback problem
424 - FSSB communication or axis amplifier link error
426 / 427 / 428 / 429 - Serial encoder communication error or mismatch
432 / 434 - Excess error or speed deviation detected during axis motion
Frequently asked questions about A06B-6096-H106:
Is this a single-axis amplifier and does it use FSSB?
Yes. The A06B-6096-H106 is an SVM 1-130 single-axis unit and communicates with the CNC via the FANUC Serial Servo Bus fiber link.
Which motors are typically matched with this rating?
It is commonly paired with FANUC Alpha 22 class motors and other Alpha models with similar current requirements. Always match the SVM rating to the original machine specification and motor nameplate.
Will it drop in for any 6096 SVM?
It must match the original SVM type, current class and FSSB configuration. Confirm DC bus supply module, fiber topology and axis assignment before replacement to ensure a true drop-in fit.
Do parameters need to be reloaded on the amplifier?
Axis parameters are managed by the CNC. After installing the amplifier, standard axis enable and servo checks are performed at the control, following the machine builder’s procedures.
What should I check if I see ALM 01 or CNC alarm 401?
Inspect incoming power, DC bus level, motor power leads, short circuits and cabinet cooling. For 401 also verify FSSB fiber connections, amplifier ready chain and the CNC enable sequence.
