A06B-6096-H102 Fanuc Servo Amplifier Module SVM 1-20

Rating:
100% of 100

Starting at €1,100.00 €1,100.00

Manufacturer's Suggested Retail Price (11-2026): €3,689.00
Product condition Availability Warranty
Price
Exchange service
Ships from: FRANCE Warehouse
stock available Immediate shipment
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€1,100.00 €1,100.00
Your savings on Manufacturer's suggested retail price: €1,730.00
Refurbished
Ships from: FRANCE Warehouse
stock available Shipment within 3 days
4 months Warranty Replacement The product's warranty covers replacement with the same or a similar product for the entire contractual period.
€1,490.00 €1,490.00
Your savings on Manufacturer's suggested retail price: €2,199.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your A06B-6096-H102 Servo Amplifier Module SVM 1-20 reference A06B-6096-H102 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

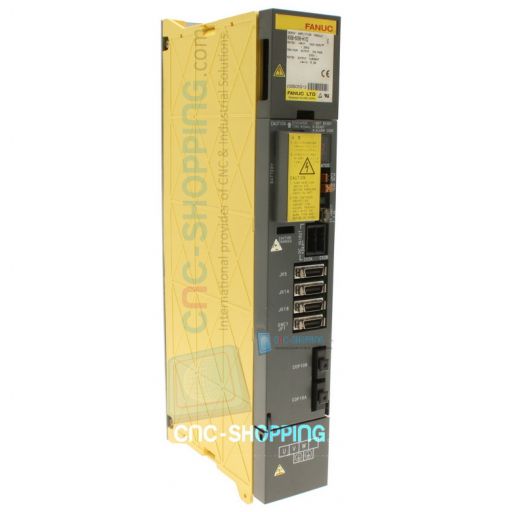

The FANUC ALPHA SVM 1-20 is a single-axis servo amplifier used to drive and protect a matched ALPHA servo motor on the L axis. This CNC replacement component regulates phase current to the motor, manages regenerative braking, and monitors the DC bus so the axis can position accurately under the CNC. It is widely sourced as a replacement unit or spare part for FANUC ALPHA servo systems on lathes, mills and machining centers.

Designed for reliable field replacement, the A06B-6096-H102 interfaces with the ALPHA power section and the CNC command link, providing stable torque control and fault monitoring. The module’s protection and alarm routines cover DC link undervoltage, discharge circuit health, internal fan supervision and overcurrent events, which helps maintenance teams diagnose issues quickly and restore machine uptime.

With a rated input window of 283 to 325 V and a nominal power of 1.25 kW, this SVM unit supplies up to 230 V AC to the motor phases. The L-axis continuous output is specified at 5.9 A, which suits many small to mid-size FANUC ALPHA servo motors when paired with the correct power supply and CNC configuration.

Reference: A06B-6096-H102

Manufacturer: FANUC

Product type: FANUC Servo Drive 6096 series

Main function: Single-axis ALPHA servo amplifier for L-axis current regulation, motor commutation and regenerative braking under CNC control.

Applications: Field replacement on FANUC ALPHA-equipped CNC lathes, machining centers and automation equipment that require an SVM 1-20 one-axis module.

Key technical data: SVM 1-20 one-axis module for the L axis, rated input 283 to 325 V with nominal 1.25 kW handling, maximum motor output 230 V AC, rated L-axis current 5.9 A continuous, Japan build quality. Works within the FANUC ALPHA servo system alongside the matching ALPHA power supply and servo motor.

In day-to-day maintenance this unit is a drop-in replacement unit when the installed SVM fails or shows intermittent faults. Keeping a stocked spare in the crib shortens machine downtime during breakdowns, and allows planned swaps during rebuilds or retrofit work without extending stoppages on the production floor.

For corrective actions after alarms such as overcurrent or DC bus undervoltage, technicians commonly confirm the motor and power supply health, then replace the drive to validate root cause. The A06B-6096-H102 is frequently used for fast recovery of axis motion on legacy FANUC ALPHA machines where consistent axis stability is required.

Each unit is a tested unit verified on our FANUC test simulator with servo motors and CNC feedback by skilled engineers. Functional checks include axis enable, current regulation and alarm handling. Units are packed in ESD-safe materials with robust cushioning for industrial shipping. Supplied with warranty, with fast dispatch depending on availability and worldwide shipping options.

This model is also suitable as an emergency spare part to reduce unexpected downtime. Cnc-shopping supports obsolete part sourcing for older FANUC ALPHA installations and can offer repair service or exchange service when appropriate. Refurbished unit options and surplus inventory may be available for retrofit and replacement projects.

Frequently asked questions about A06B-6096-H102:

Is this module single-axis and which axis does it drive?
Yes, the SVM 1-20 is a single-axis amplifier dedicated to the L axis. It regulates phase current and torque for one FANUC ALPHA servo motor within the CNC loop.

What electrical ratings should I check before ordering?
Confirm your installation matches the 283 to 325 V DC bus range from the ALPHA power supply (A06B-6077/6087 modules) and that the motor is suitable for up to 230 V AC phase output.

Which FANUC systems does it work with?
It is used in FANUC ALPHA servo systems where an SVM 1-20 one-axis module is specified. Ensure the power supply and motor are the correct ALPHA types for this reference and that CNC parameters align with the replacement unit.

How are Fanuc servo amplifiers verified before shipping?
All FANUC Alpha servo amplifiers from Cnc-shopping, including the A06B-6096-H102, are fully tested on our FANUC test simulator with servo motors and CNC feedback. Testing confirms axis enable, command response, protection behavior and stable operation under load (6h TEST).

What are common power and discharge related alarms on this Fanuc A06B-6096-H102 drive?
Code 2 indicates low control power voltage and usually requires drive service. Code 3 flags low DC link voltage and the ALPHA power supply should be checked. Codes 4 and 5 relate to the regenerative discharge circuit, where DCSW or DCOH typically point to a drive that needs repair or replacement.

What are typical overcurrent and IPM alarms on the A06B-6096-H102?
Codes 6, 8, 9 and A indicate overcurrent by axis and can originate from the drive or the motor. The dot variants 6., 8., 9. and A. point to IPM faults which generally require drive repair or replacement. Code 7 flags a dynamic brake circuit issue and typically calls for drive service.

Does a fan alarm require immediate replacement?
Fanuc Alarm Code 1 signals the internal fan has stopped. Continued operation risks overheating, so the usual practice is to replace or repair the drive without delay.
