A06B-0148-B176 Brake Servo Motor FANUC model Alpha 22/3000

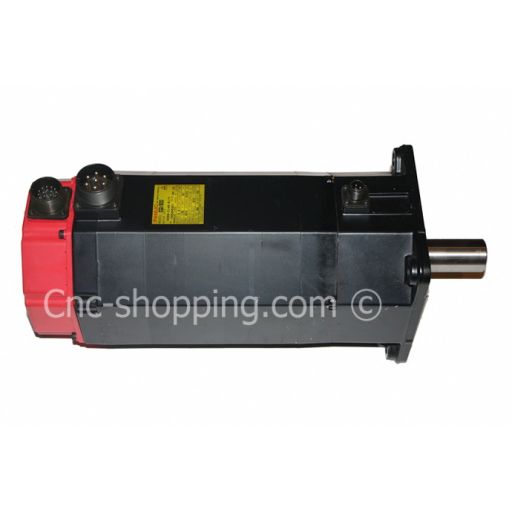

FANUC AC Servo motor A06B-0148-B176 for sale. Cnc-shopping propose to you this FANUC Model  Alpha 22/3000 motor. The speed is 3000 rpm. This motor has a straight shaft. The FANUC AC Servo motor A06B-0148-B176 includes a FANUC Pulse coder Alpha A64 super capacity with reference A860-0360-V511. This A06B-0148-B176 motor has an electromagnetic brake. All the FANUC Servo Motor Alpha 22/3000 are tested  on FANUC Alpha Servo drives with FANUC CNC to test power and feedback. Motors comes with a warranty.

A direct current flows constantly and uniformly throughout the cross-section of a uniform wire. An alternating current of any frequency is forced away from the wire's center, toward its outer surface. This is because the acceleration of an electric charge in an alternating current produces waves of electromagnetic radiation that cancel the propagation of electricity toward the center of materials with high conductivity. This phenomenon is called skin effect.

At very high frequencies the current no longer flows in the wire, but effectively flows on the surface of the wire, within a thickness of a few skin depths. The skin depth is the thickness at which the current density is reduced by 63%. Even at relatively low frequencies used for high power transmission (50–60 Hz), non-uniform distribution of current still occurs in sufficiently thick conductors. For example, the skin depth of a copper conductor is approximately 8.57 mm at 60 Hz, so high current conductors are usually hollow to reduce their mass and cost. Since the current tends to flow in the periphery of conductors, the effective cross-section of the conductor is reduced. This increases the effective AC resistance of the conductor, since resistance is inversely proportional to the cross-sectional area in which the current actually flows. The AC resistance often is many times higher than the DC resistance, causing a much higher energy loss due to ohmic heating.  FANUC A06B-0148-B176
