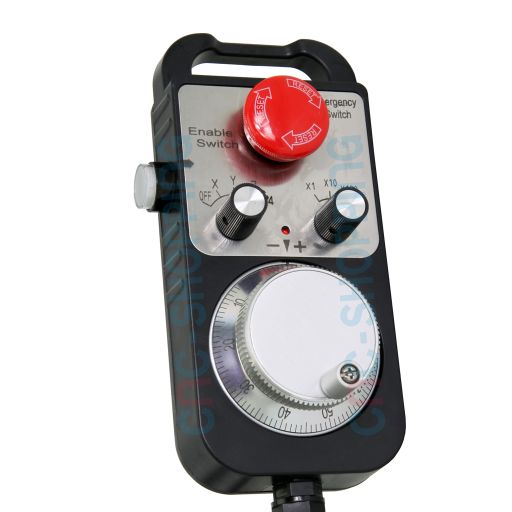

Manual rotary encoder, handwheel for FANUC systems.
The rotation of the Handwheel generates square wave pulses that are evoluated by the FANUC CNC axis controller and initiate the movement of the axis. Suitablefor manual pulse input type such as NC or milling machine equiped FANUC.
Caracteristics for the ISMM1468 Handwheel :
Rotary switch, Maximum axis 6 axis (x, y, z, 4, 5, 6)
Pulses by revolution : x1, x10, x100.
Switch ON/OFF with light
Emergency switch
Stand mounted on the machine to stand the Handwheel.
Voltage : 5V DC.
Output signals : A / B.
Including the cable of the HANDWHEEL
Diagram inside.
|
