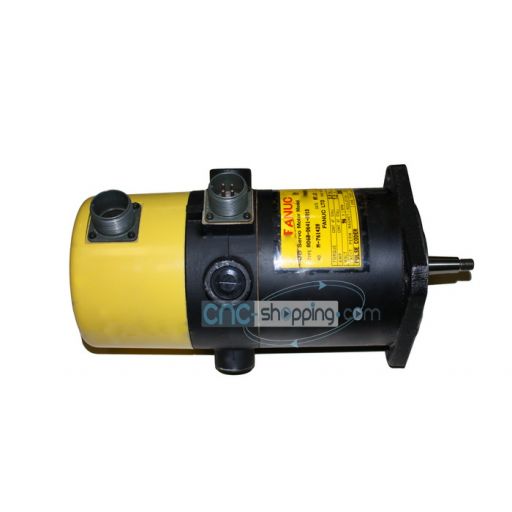

A06B-0641-B013 FANUC DC Servo Motor Model 0M

FANUC DC Servo motor A06B-0641-B013. This is a FANUC DC Servo Motor Model 0M. The Motor speed is 2000 rpm. This motor have a taper shaft with a key. This motor includes a FANUC pulse coder 3000 pulses. Each FANUC Motor A06B-0641-B013 is tested and have a warranty. This motor is ready to replace your defective part.

On FANUC DC Servo Motor Model 0M with a pulse coder config, inside the pulse coder, a metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. Cnc-shopping website. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. The metal pattern is designed so that each possible position of the axle creates a unique binary code in which some of the contacts are connected to the current source (i.e. switched on) and others are not (i.e. switched off). FANUC DC Servo Motor A06B-0641-B013
